Igniter: Locations

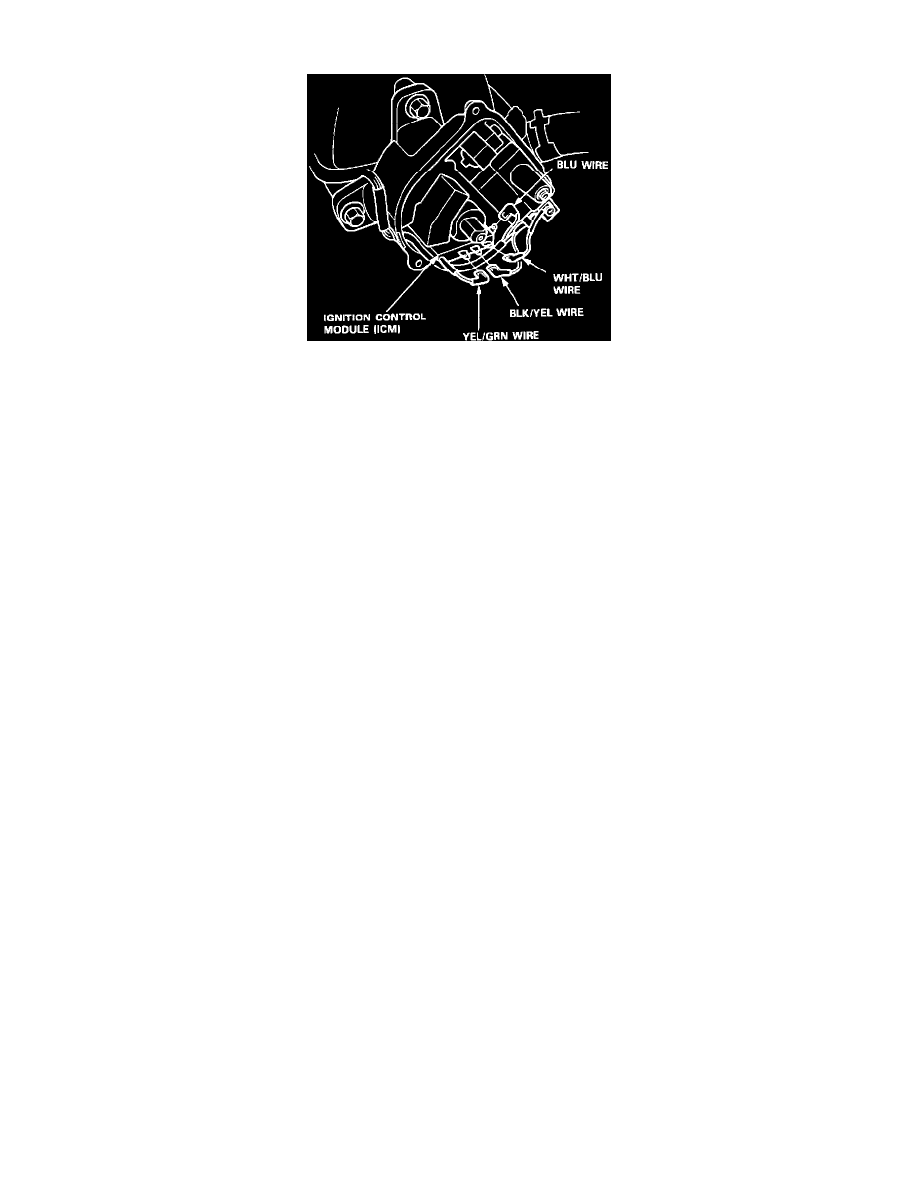

Ignition Control Module

The Ignition Control Module (ICM) is located inside distributor assembly
