Civic L4-1668cc 1.7L SOHC MFI (2003)

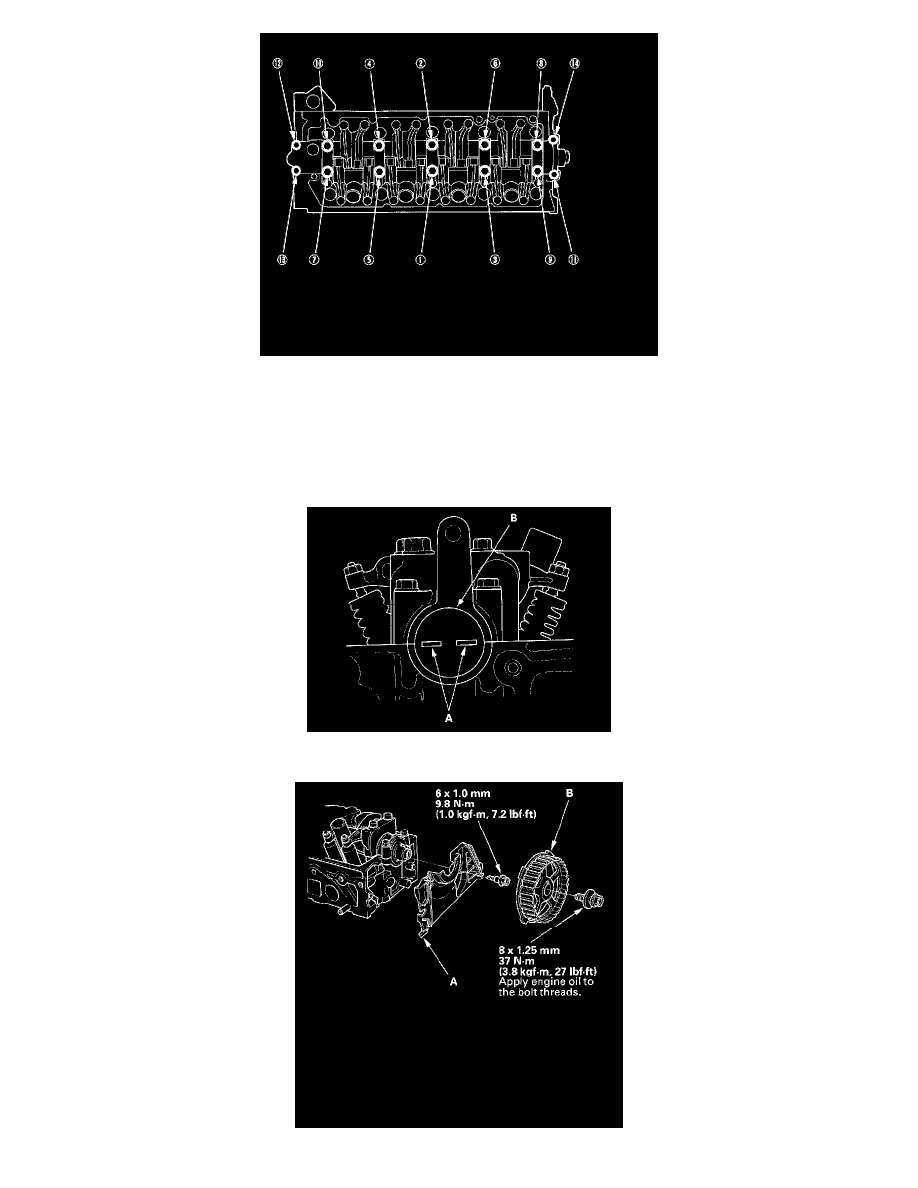

8. Tighten each bolt two turns at a time, in the sequence shown below, to ensure that the rockers do not bind on the valves.
Specified torque
8 mm bolts: 20 Nm (2.0 kgf-cm, 14 ft. lbs.)
Apply engine oil to the bolt threads.
6 mm bolts: 12 Nm (1.2 kgf-cm, 8.7 ft. lbs.)
Apply engine oil to the bolt threads.
6 mm bolts: (11), (12), (13), (14)
9. Align the marks (A) on the new cylinder head plug (B) with the top edge of the head, then install the cylinder head plug in the cylinder head.
