Alignment: Specifications (page 5 of 5)
- Make
- Honda
- Model
- Civic
- Engine
- L4-1668cc 1.7L SOHC MFI
- Year
- 2003
- Section
- Alignment
MaintenanceSpecifications · page 5 of 5

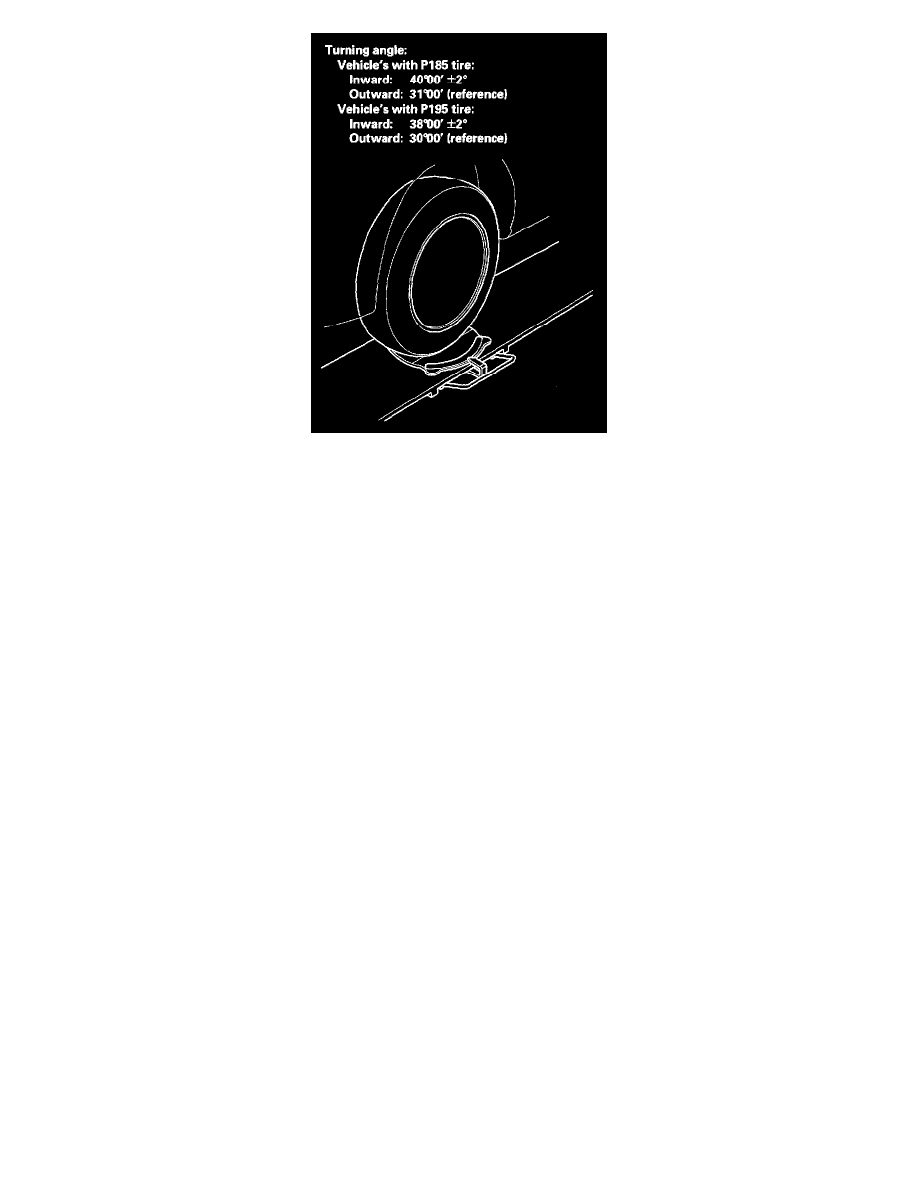

1. Turn the steering wheel fully to the right and left while applying the brake, and check the turning angles of both front wheels. If the turning angle is
not within the specification or the inward turning angles differ between the right and left side, go to step 2.
2. Check the toe. If it is correct, but the turning angle is not within the specification, check for bent or damaged suspension components.
