Honda Workshop Service and Repair Manuals > Civic CX Hatchback L4-1590cc 1.6L SOHC MFI (1997) > Powertrain Management | Fuel Delivery and Air Induction | PGM-FI Main Relay <--> [Main Relay (Computer/Fuel System)] | Component Information | Diagrams | Page 4034

Relays and Modules - Fuel Delivery and Air Induction > < Diagram Information and Instructions|Page 4033

Page 3

background image

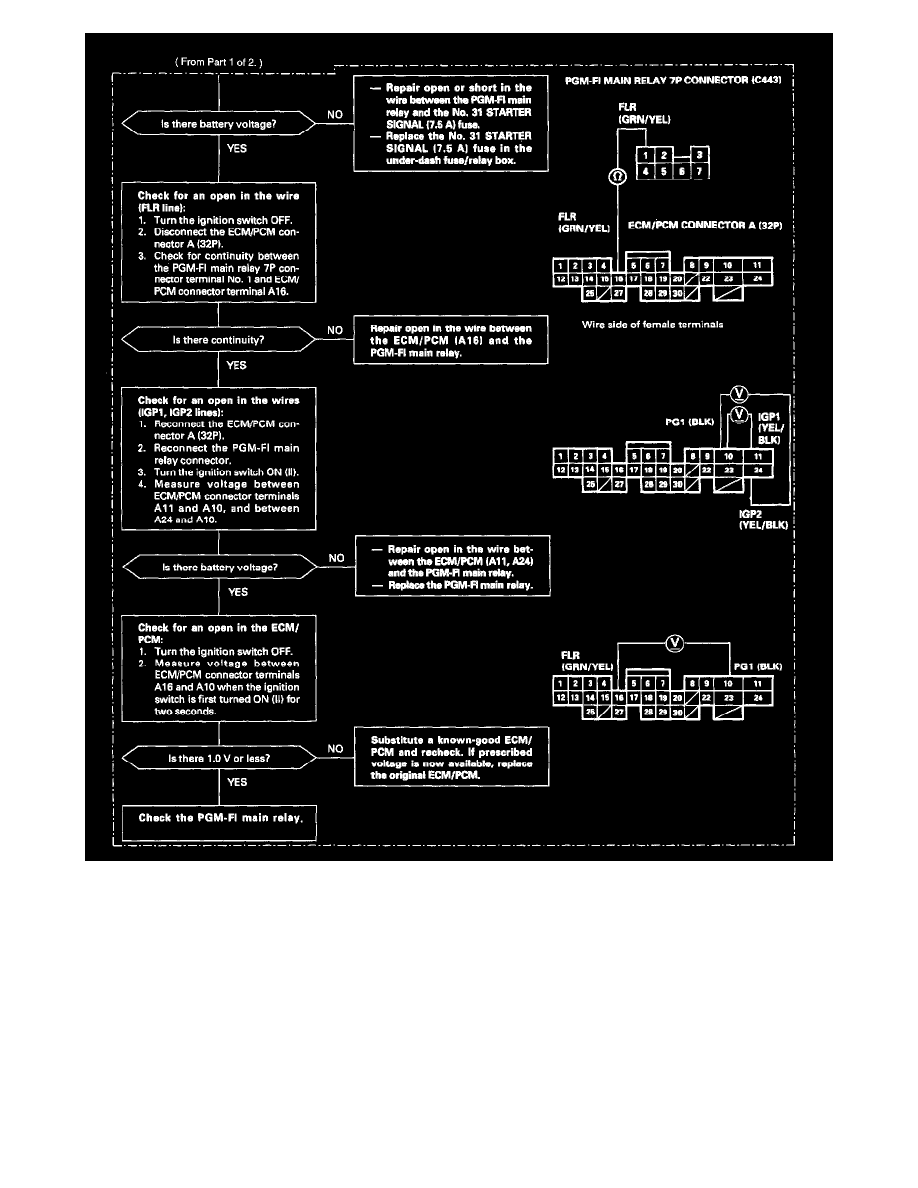

Part 2 Of 2

Troubleshooting

Powertrain Management
Fuel Delivery and Air Induction
PGM-FI Main Relay <--> [Main Relay (Computer/Fuel System)] / Component Information
Diagrams
Page 4034
