Page 1

background image

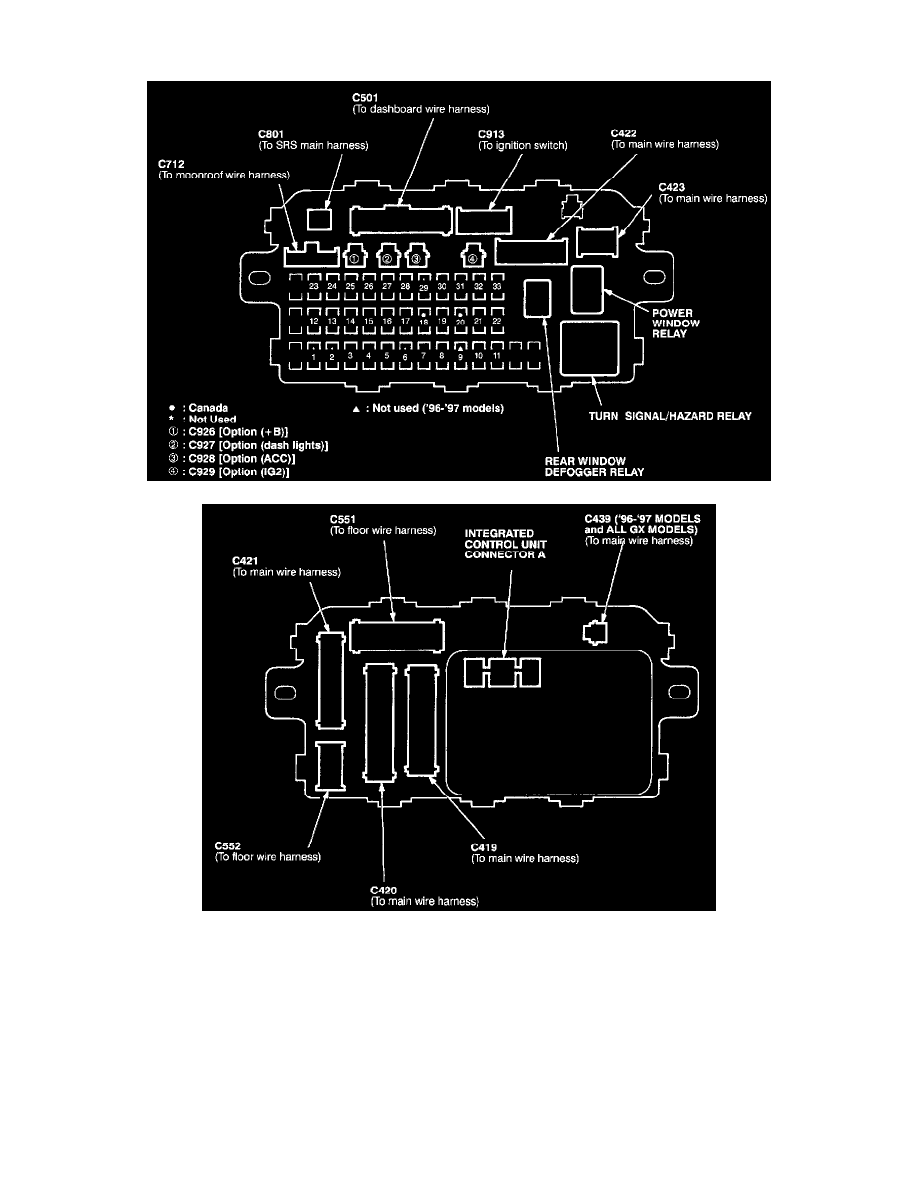

Relay Box: Connector Locations

Starting and Charging
Power and Ground Distribution
Relays and Modules - Power and Ground Distribution / Relay Box / Component Locations
Page 6082
