Page 1

background image

All Except CVT

Transmission and Drivetrain
Sensors and Switches - Transmission and Drivetrain / Sensors and Switches - A/T

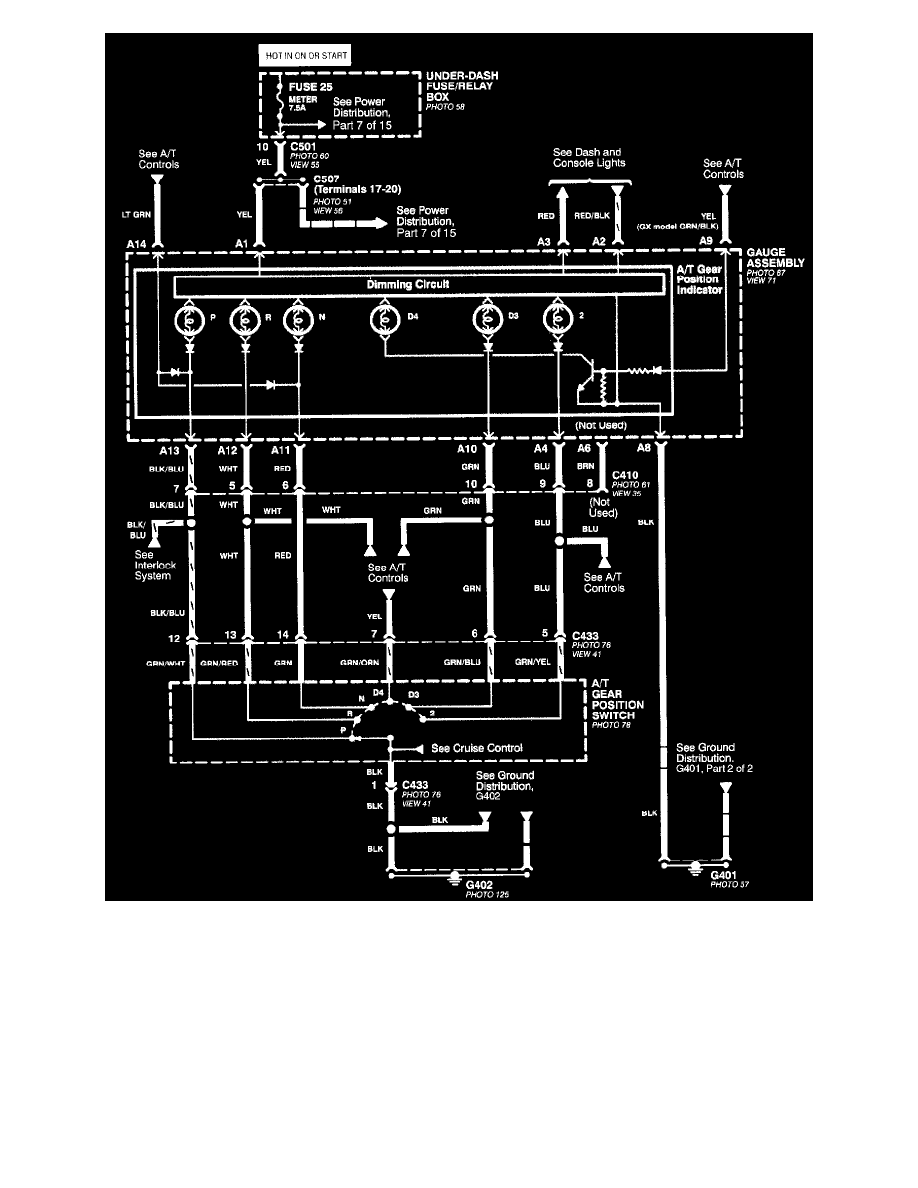

A/T Gear Position Signal <--> [Transmission Position Switch/Sensor, A/T] / Component Information
Diagrams / Diagram Information and Instructions
Page 5322
