Civic DX Sedan L4-1590cc 1.6L SOHC MFI (1999)
5. Remove the internal circlip.

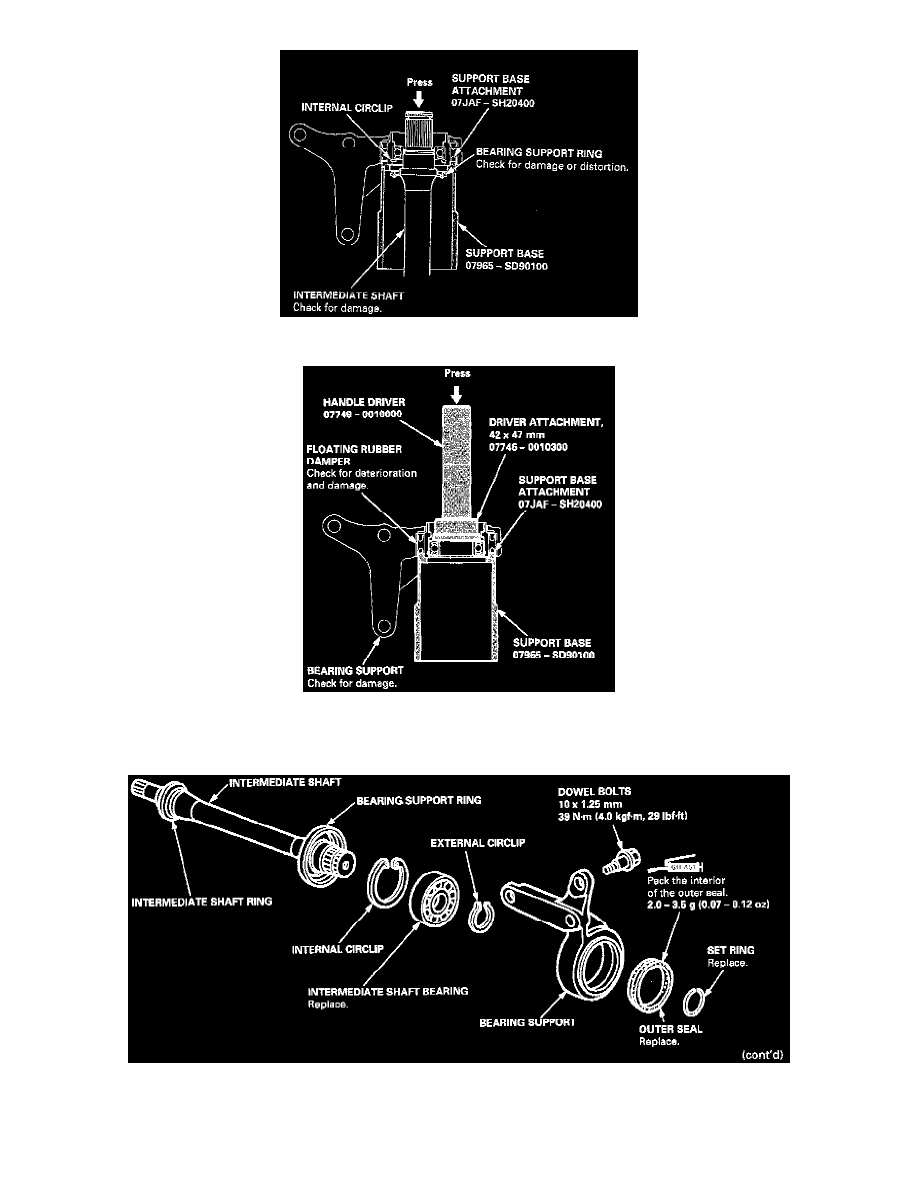

6. Press the intermediate shaft bearing out of the bearing support using the special tools and a press as shown.
REASSEMBLY
NOTE:
-
Clean the disassembled parts with solvent, and dry them thoroughly with compressed air. Do not wash the rubber parts with solvent.
-
Be careful not to damage the metal rings on the intermediate shaft during reassembly.
