Civic Sedan L4-1590cc 1.6L SOHC (D16A6) MFI (1990)
_mfi/Page-801001.png)
Case: Service and Repair
REMOVAL

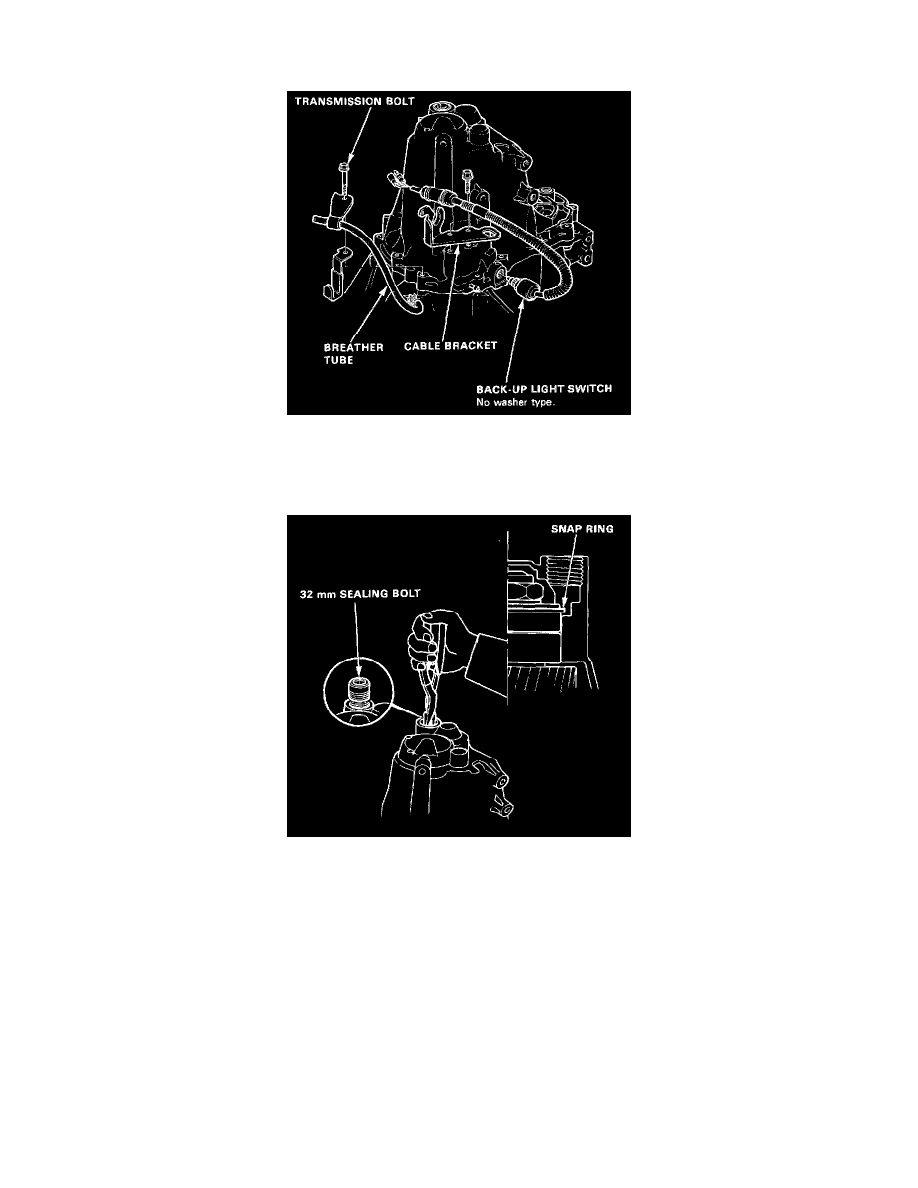

1. Remove the back-up light switch
2. Remove the cable bracket.
3. Remove the transmission attaching bolts.
4. Disconnect the breather tube.
5. Remove the 32 mm sealing bolt.
6. Expand the snap ring on the countershaft ball bearing and remove it from the groove using snap ring pliers.
