CR-V 4WD L4-2.4L (2004)
Grille: Service and Repair
Front Grille Replacement
1. Remove the front bumper.

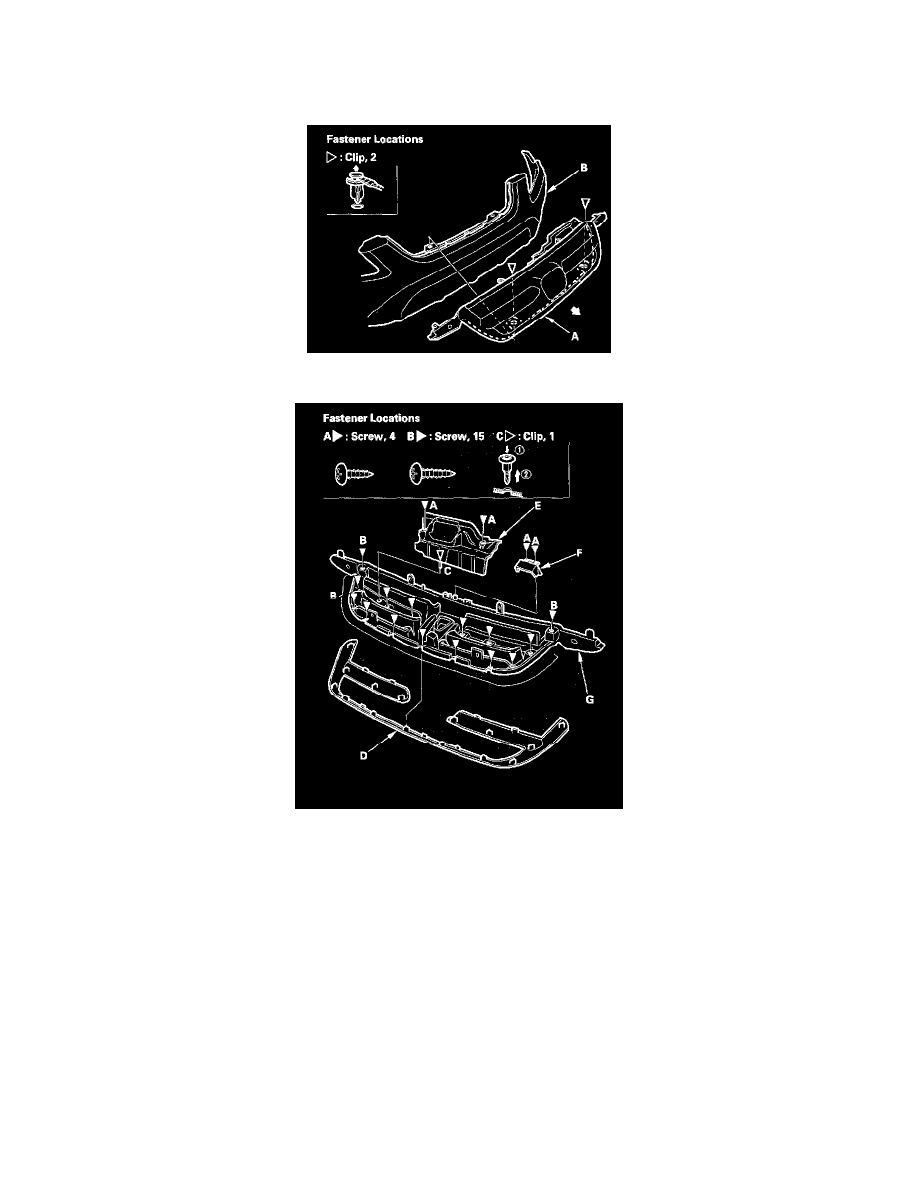

2. Remove the clips, and remove the front grille (A) from the front bumper (B) by pulling it out. Take care not to scratch the front bumper.
3. If necessary, remove the screws (A, B) and clip (C), then remove the grille molding (D), splash shield (E), and front grille absorber (F) from the
front grille (G).
4. Install the grille in the reverse order of removal, and note these items:
-
Replace any damaged clips.
-
Push the clips into place securely.
