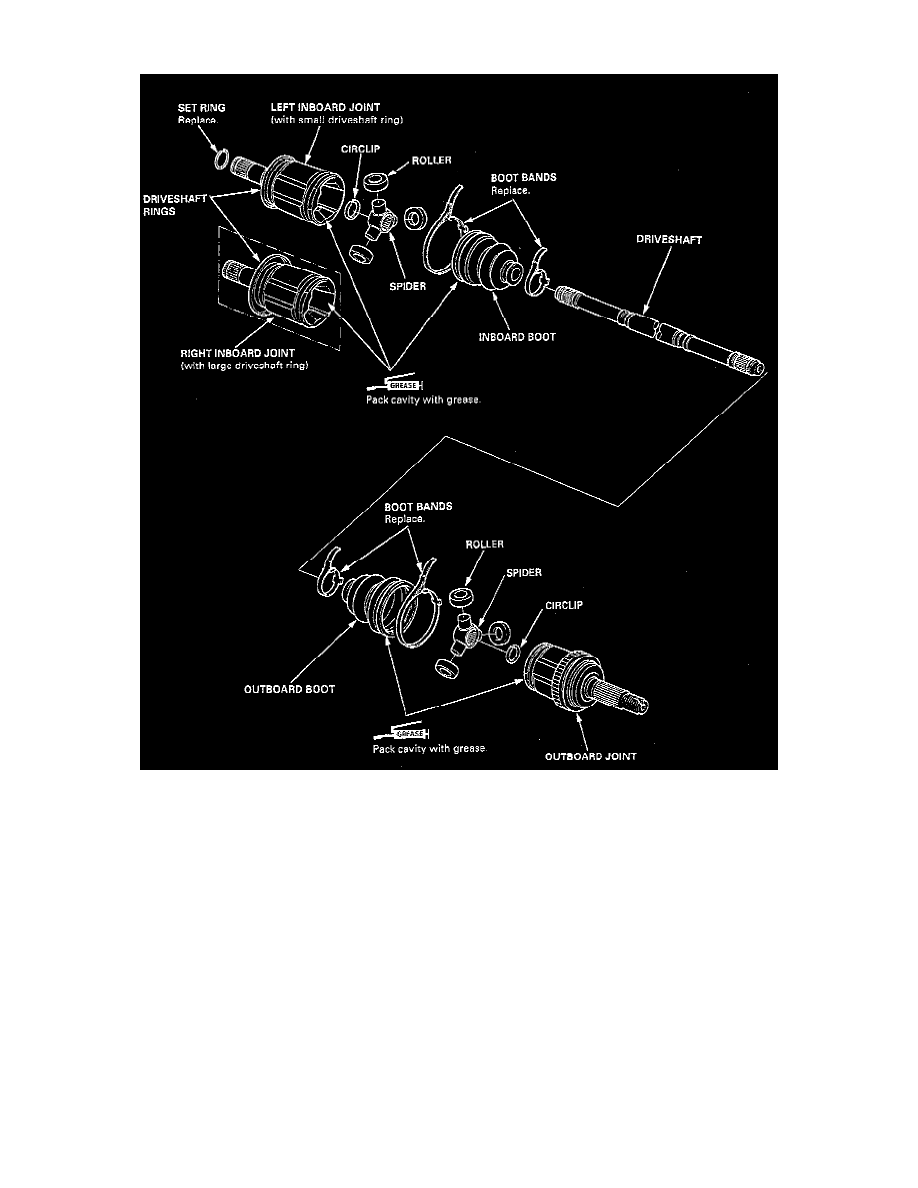

Axle Shaft: Diagrams

Transmission and Drivetrain
Drive Axles, Bearings and Joints
Axle Shaft Assembly
Axle Shaft
Component Information
Diagrams
