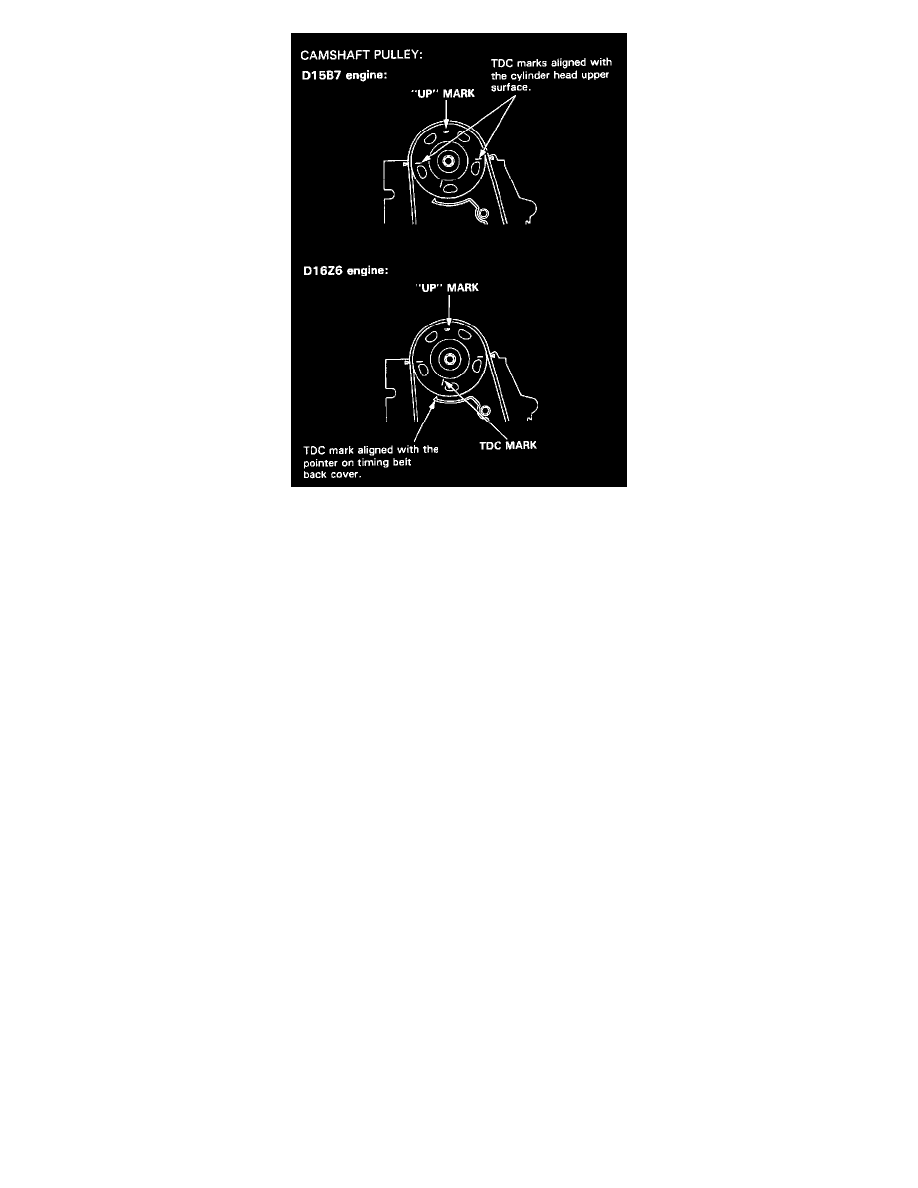

8. If the camshaft pulley is not positioned at TDC, remove the timing belt and adjust the positioning, then reinstall the timing belt.
NOTE:
^
After installation, adjust the tension of each accessory drive belt.
