Element 4WD L4-2.4L (2004)
Variable Valve Timing Solenoid: Service and Repair
VTEC Solenoid Valve Removal/Installation
VTEC Solenoid Valve Removal/Installation

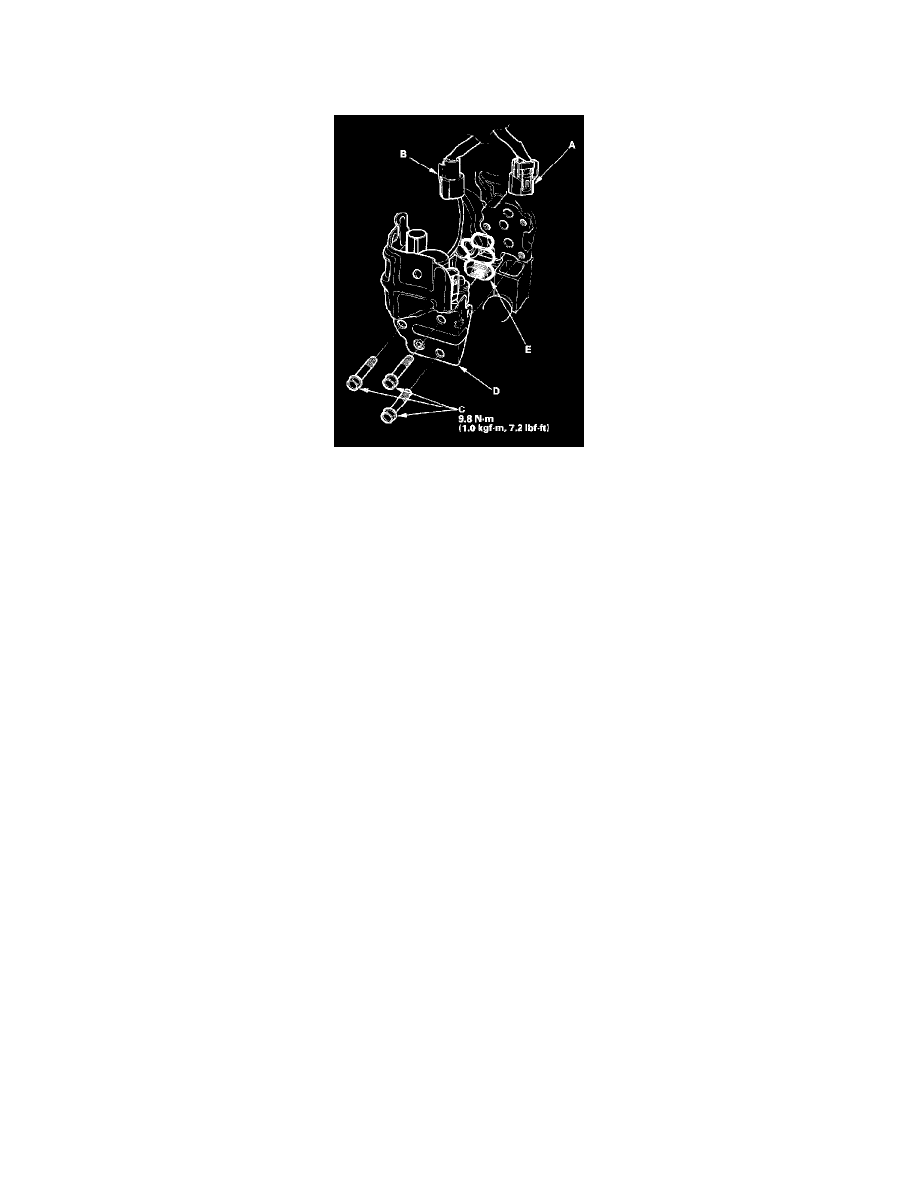

1. Disconnect the VTEC solenoid valve connector (A) and the VTEC oil pressure switch connector (B).
2. Remove the bolts (C).
3. Remove the VTEC solenoid valve (D).
4. Install the valve in the reverse order of removal with a new solenoid valve filter (E).
