Drive Belt: Diagrams (page 3 of 3)
- Make
- Honda
- Model
- Element 4WD
- Engine
- L4-2.4L
- Year
- 2004
- Section
- Drive Belt
MaintenanceDiagrams · page 3 of 3
Drive Belt: Service and Repair
Drive Belt Replacement

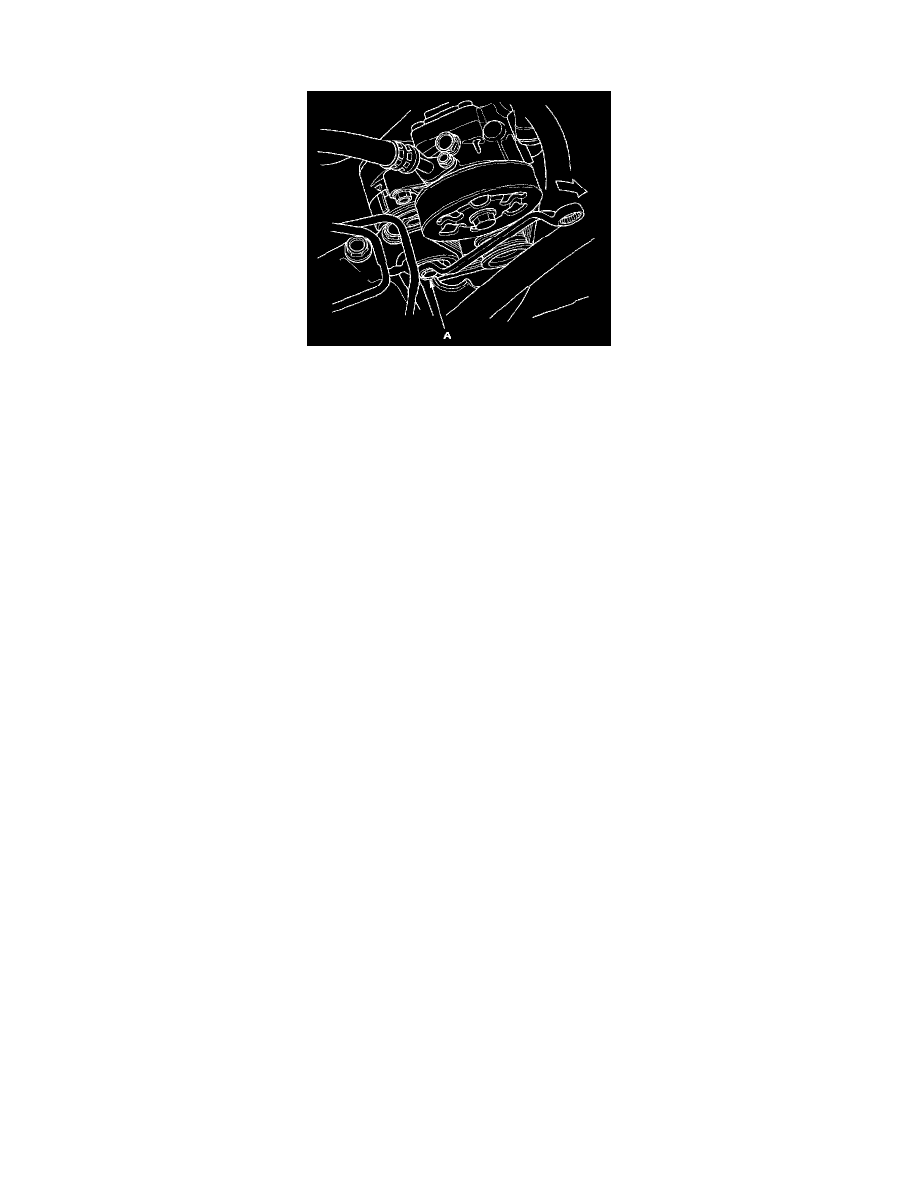

1. Move the auto-tensioner (A) to relieve tension from the drive belt, and remove the drive belt.
2. Install the new belt in the reverse order of removal.
