Fit L4-1.5L (2008)
Front Steering Knuckle: Service and Repair
Knuckle/Hub/Wheel Bearing Replacement

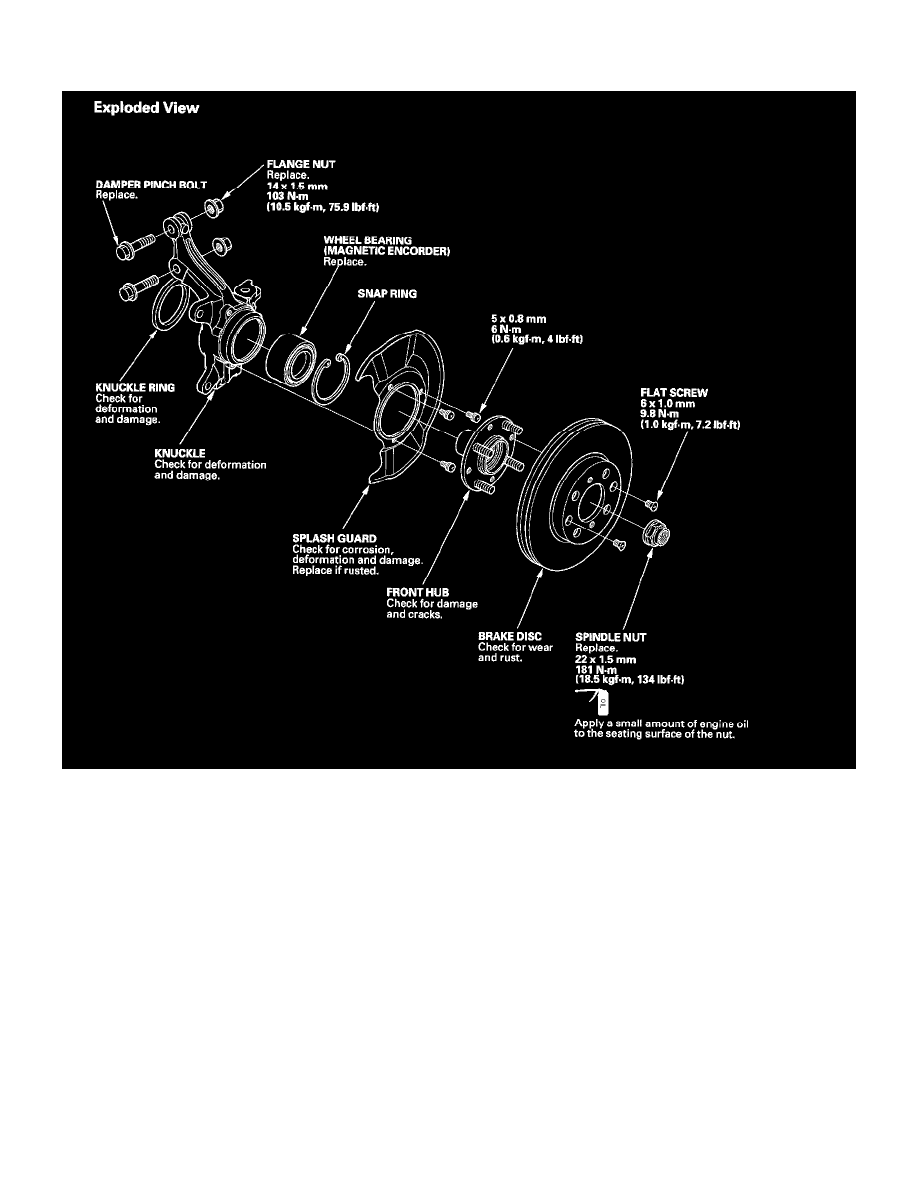

Knuckle/Hub/Wheel Bearing
Special Tools Required
^
Ball joint thread protector, 12 mm 07AAF-SDAA100
^
Ball joint remover, 28 mm 07MAC-SL0A202
^
Driver 07749-0010000
^
Attachment, 62 x 64 mm 07947-6340400
^
Hub dis/assembly tool 07965-SA70100
^
Support base 07965-SD90100
Knuckle/Hub Replacement
1. Raise the front of the vehicle, and support it with safety stands in the proper locations.
2. Remove the wheel nuts (A) and front wheel.
