Insight L3-1.0L Hybrid (2000)
-
Always use Honda All Season Antifreeze/Coolant Type 2 (P/N OL999-9001). Using a non-Honda coolant can result in corrosion, causing the
cooling system to malfunction or fail.
-
Honda All Season Antifreeze/Coolant Type 2 is a mixture of 50% antifreeze and 50% water. Premixing is not required.
Engine Coolant Refill Capacity [including reservoir capacity of 0.4 L (0.4 US qt.): 2.5 L (2.6 US qt.)
10. Tighten the bleed bolt as soon as coolant starts to run out in a steady stream.
11. Pour Honda All Season Antifreeze/Coolant Type 2 into the radiator to the bottom of the filler neck, and install the radiator cap.

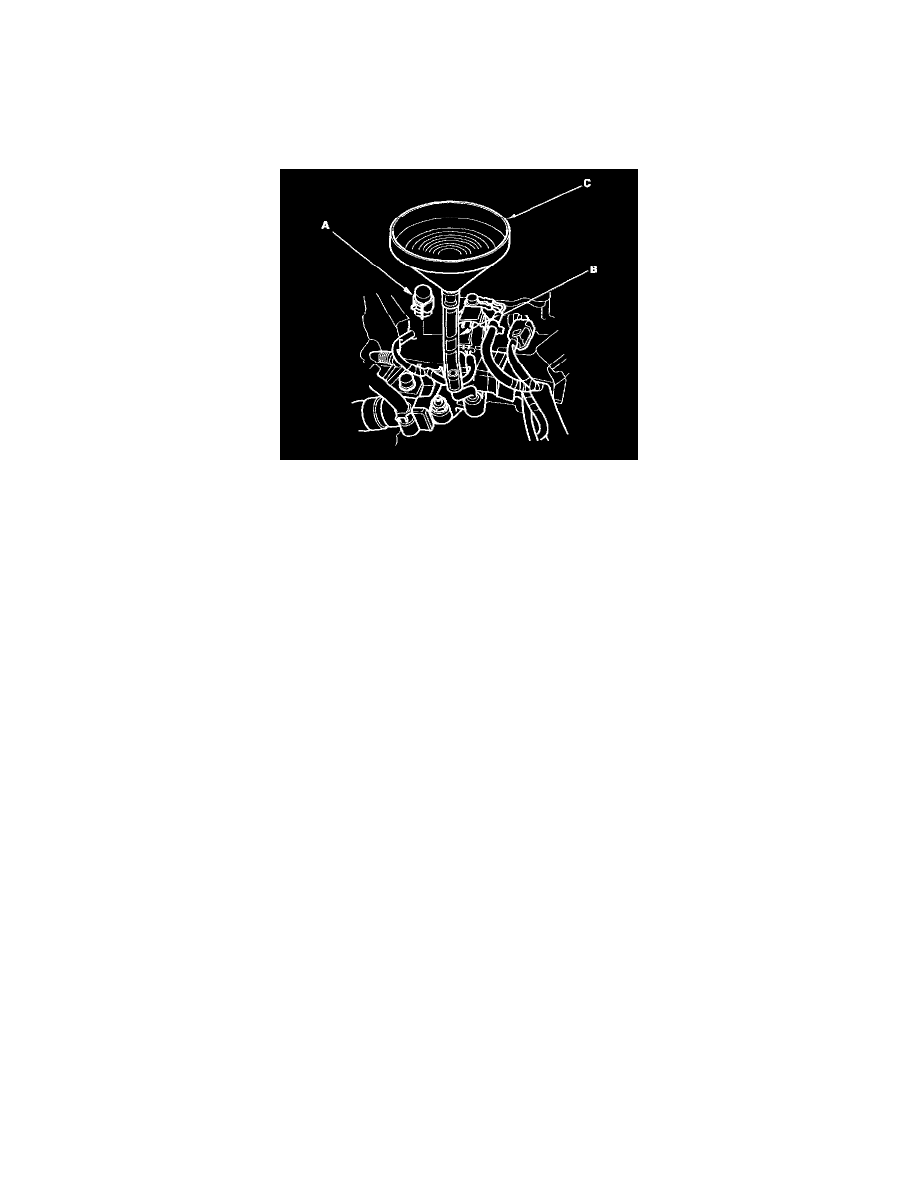

12. Remove the cap (A) from the water outlet, then install an 8 mm hose (B) and a funnel (C).
13. Pour Honda All Season Antifreeze/Coolant Type 2 into the funnel until the coolant level reaches the base of the funnel, then start the engine and
let it idle.
14. Add Honda All Season Antifreeze/Coolant Type 2 into the funnel as the level goes down.
15. Stop the engine, then remove the funnel and the 8 mm hose from the water outlet. Install the cap.
16. Start the engine, and let it run until warmed up (radiator fan comes on at least twice). Then, turn off the engine, and let it cool down.
17. If necessary, add more Honda All Season Antifreeze/Coolant Type 2 into the radiator up to the base of the filler neck and into the reservoir up to
the MAX mark.
