Insight L3-1.0L Hybrid (2000)
Flywheel: Testing and Inspection
Clutch Replacement
Special Tools Required
^
Clutch alignment shaft 07JAF-PM7012A
^
Remover handle 07936-3710100
^
Ring gear holder 07LAB-PV00100 or 07924-PD20003
^
Driver 07749-0010000
^
Attachment, 32 x 35 mm 07746-0010100
Flywheel Inspection
1. Inspect the ring gear teeth for wear and damage.
2. Inspect the clutch disc mating surface on the flywheel for wear, cracks, and burning.

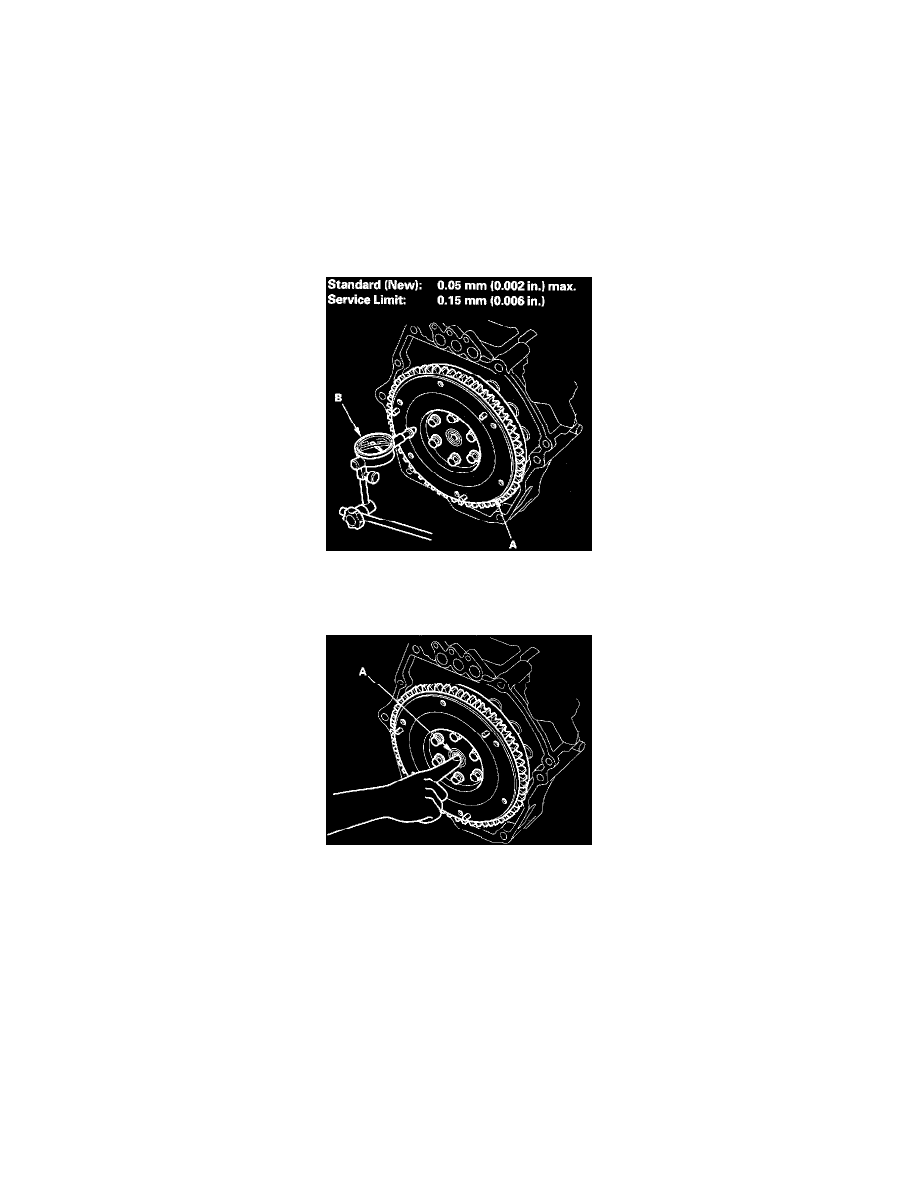

3. Measure the flywheel (A) runout using a dial indicator (B) through at least two full turns engine installed. Push against the flywheel each time you
turn it to take up the crankshaft thrust washer clearance. If the runout is more than the service limit, replace the flywheel and recheck the runout.
Resurfacing the flywheel is not recommended.
4. Turn the inner race of the ball bearing (A) with your finger. The ball bearing should turn smoothly and quietly. Check that the ball bearing outer
race fits tightly in the flywheel. If the race does not turn smoothly, quietly, or fit tight in the flywheel, replace the ball bearing.:
