Timing Belt: Specifications (page 14 of 19)
- Make
- Honda
- Model
- Odyssey
- Engine
- V6-3.5L
- Year
- 2003
- Section
- Timing Belt
MaintenanceSpecifications · page 14 of 19

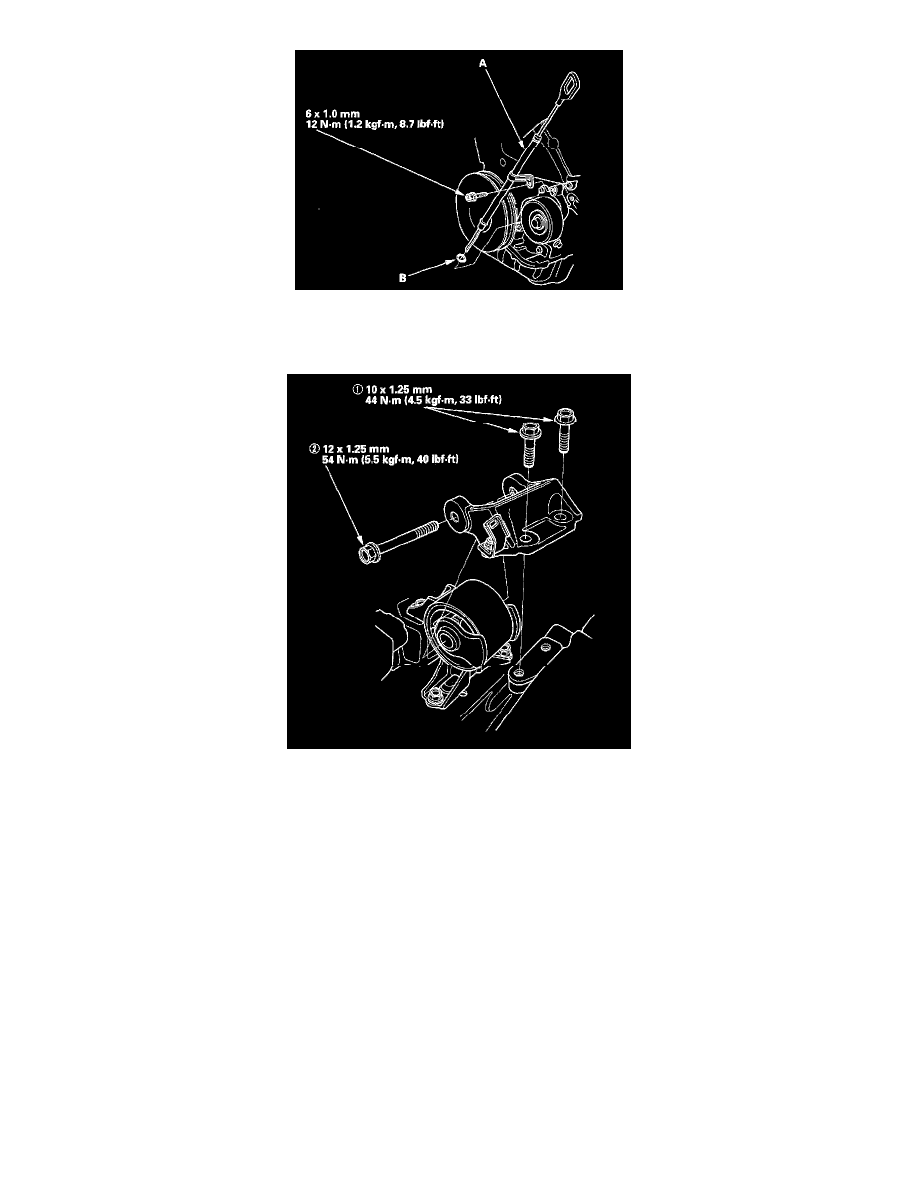

25. Install the dipstick and tube (A) with a new O-ring (B).
26. Install and adjust the Power Steering (P/S) pump belt.
27. Install the alternator-compressor belt.
28. Install the side engine mount bracket, then tighten the mounting bolts in the numbered sequence shown.
Used Belt
Follow this procedure when installing a used timing belt.
1. Clean the timing belt pulleys, and upper and lower covers.
