Odyssey EX L4-2253cc 2.3L SOHC (VTEC) MFI (1998)
_mfi/Page-2179001.png)
Map Light: Testing and Inspection

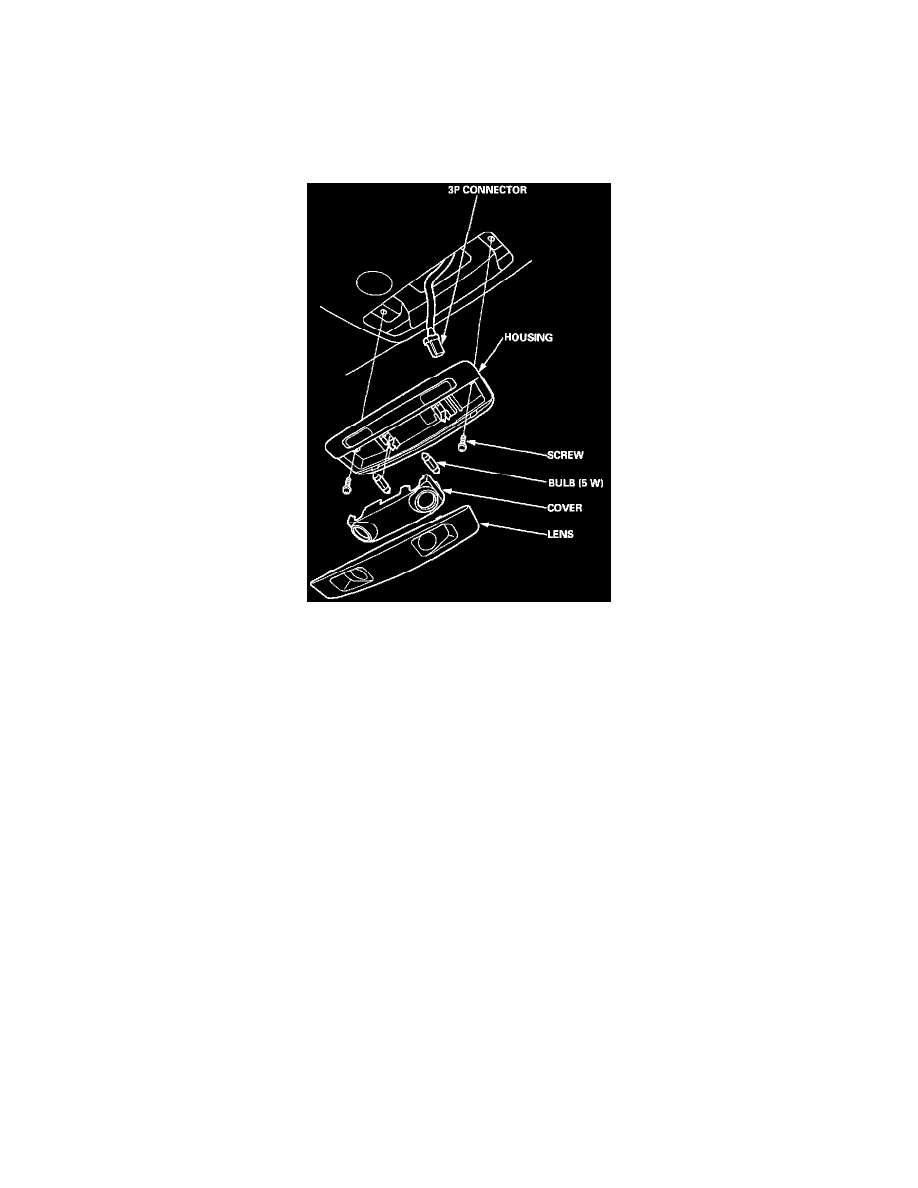

Front Individual MAP Lights Test
NOTE: The bulbs alone can be replaced by removing just the lens and cover.
1. Turn the light switch OFF.
2. Pry off the lens.
3. Remove the two screws and the housing.
Spotlights Test/Replacement
4. Disconnect the 3P connector from the housing.
