Timing Belt: Service and Repair
Removal

TIMING BELT REMOVAL

Special Tools Required
^

Holder Handle 07JAB-001020A

^

Holder Attachment, 50 mm, Offset 07MAB-PY301 OA

^

Socket, 19 mm 07JAA-001020A or a commercially available 19 mm socket

^

Belt Tension Release Arm, YA9317, commercially available

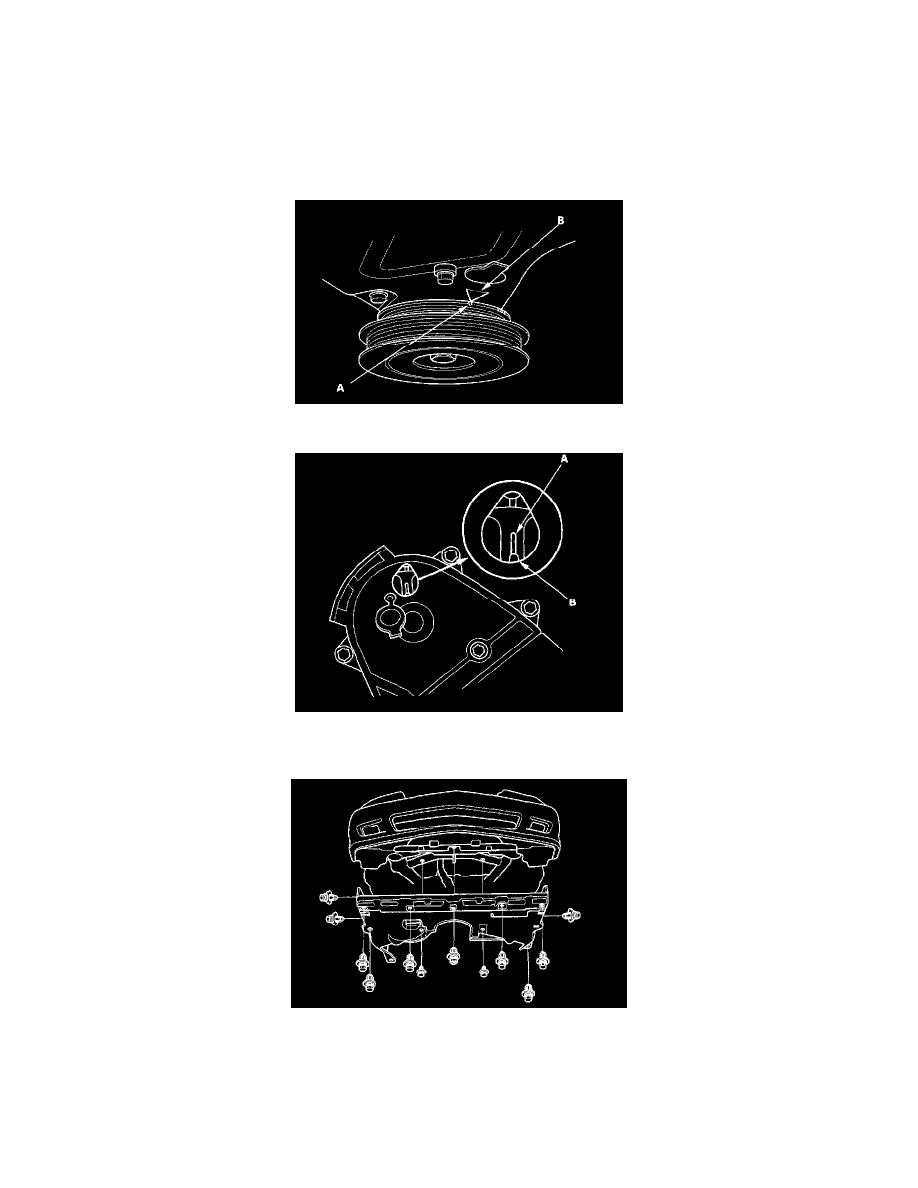

1. Turn the crankshaft so its white mark (A) lines up with the pointer (B).

2. Check that the rear camshaft pulley mark (A) and rear upper cover mark (B) are aligned.
3. Remove the front tires/wheels.

4. Remove the splash shield.
