Passport LX 2WD V6-3.2L SOHC (6VD1) (1997)
/Page-677001.png)
Water Pump: Mechanical Specifications

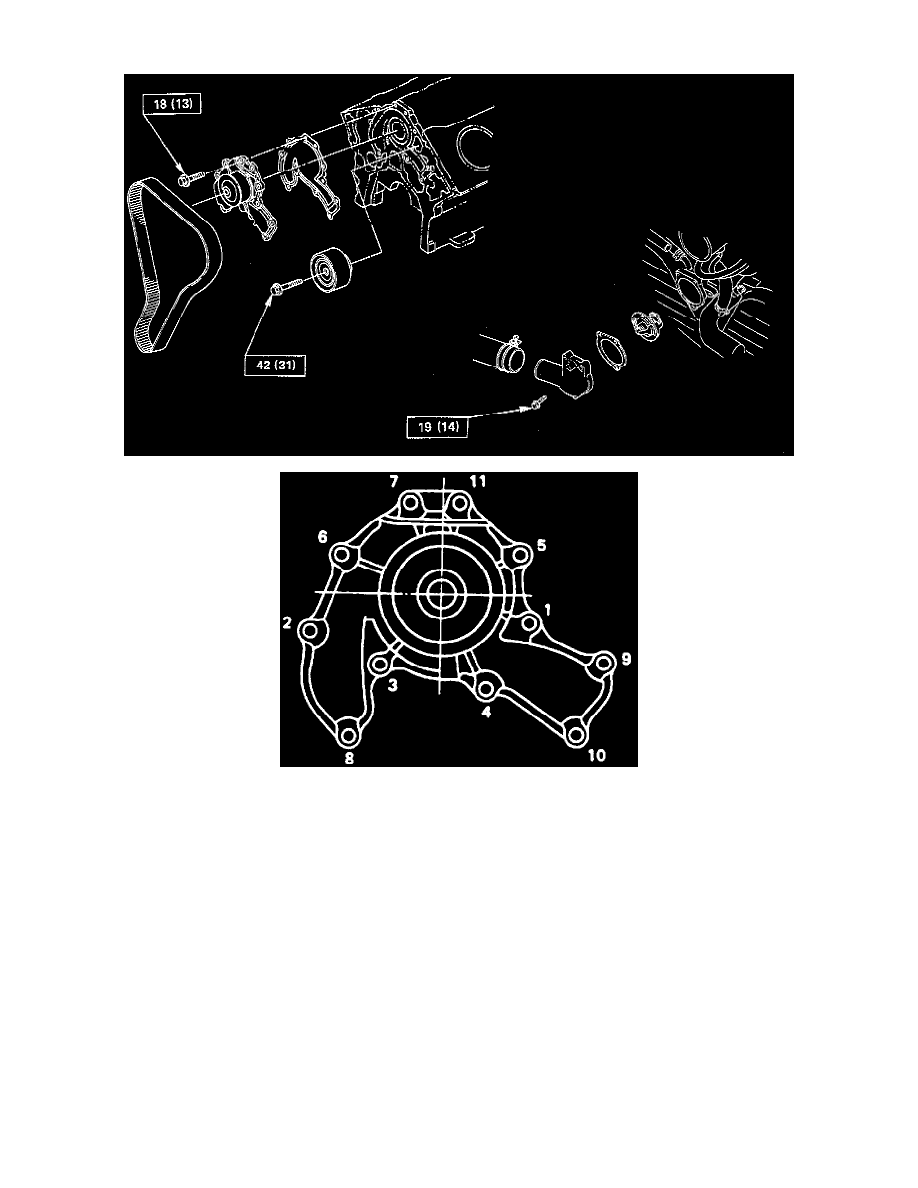

Fig. 69 Water Pump Tightening Sequence
TIGHTENING SEQUENCE/SPECIFICATIONS
Water Pump Assembly [3]
-
Install coolant pump assembly and tighten bolts in sequence to 18 Nm (13 ft. lbs).
