Hose/Line HVAC: Service and Repair
Rear A/C Line Replacement
Removal
1. Recover the refrigerant with a recovery/recycling/charging station.

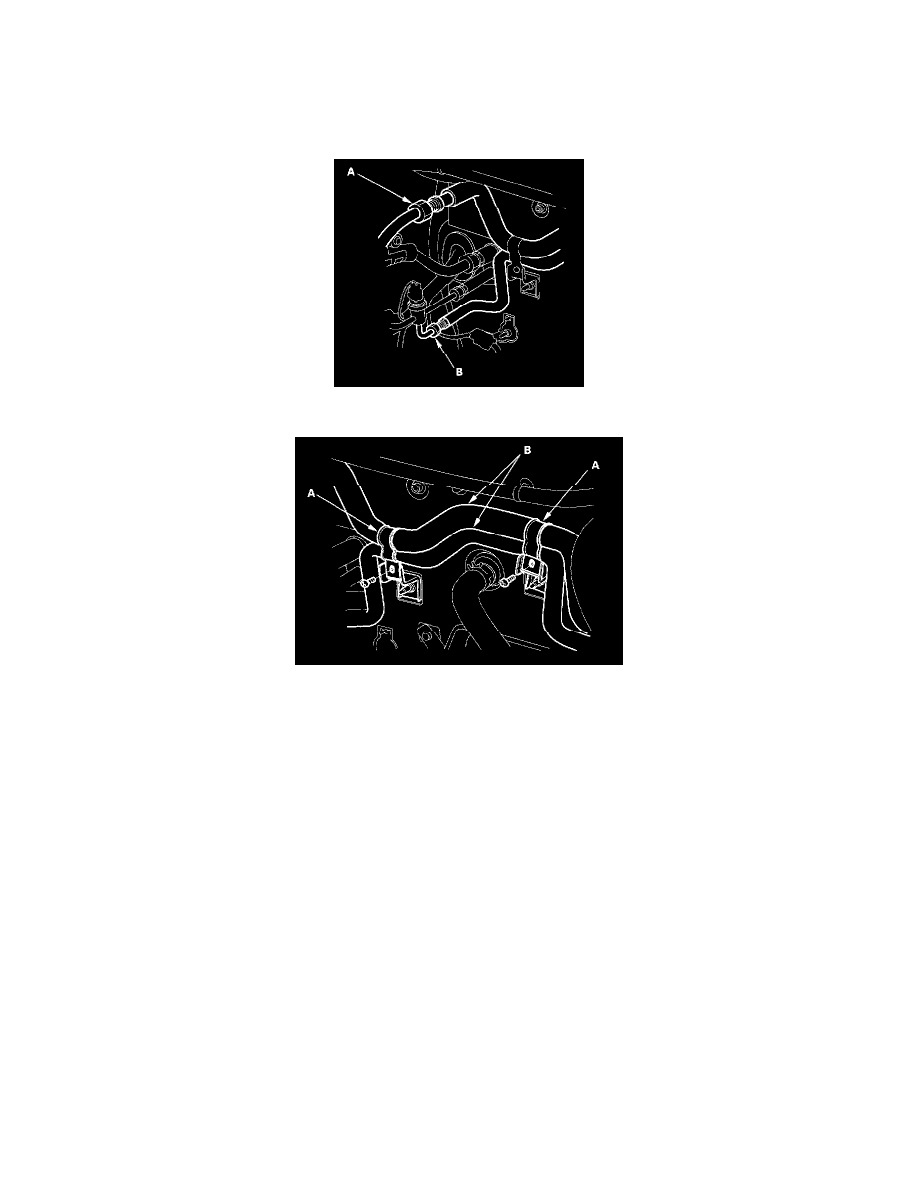

2. Disconnect the rear A/C suction line (A) and receiver line (B) at the front evaporator.
3. Remove the screws from the two clamps (A) along the engine compartment bulkhead, then free the rear A/C lines (B) from the clamps.
4. Raise the vehicle on a hoist, and remove the left front wheel.
