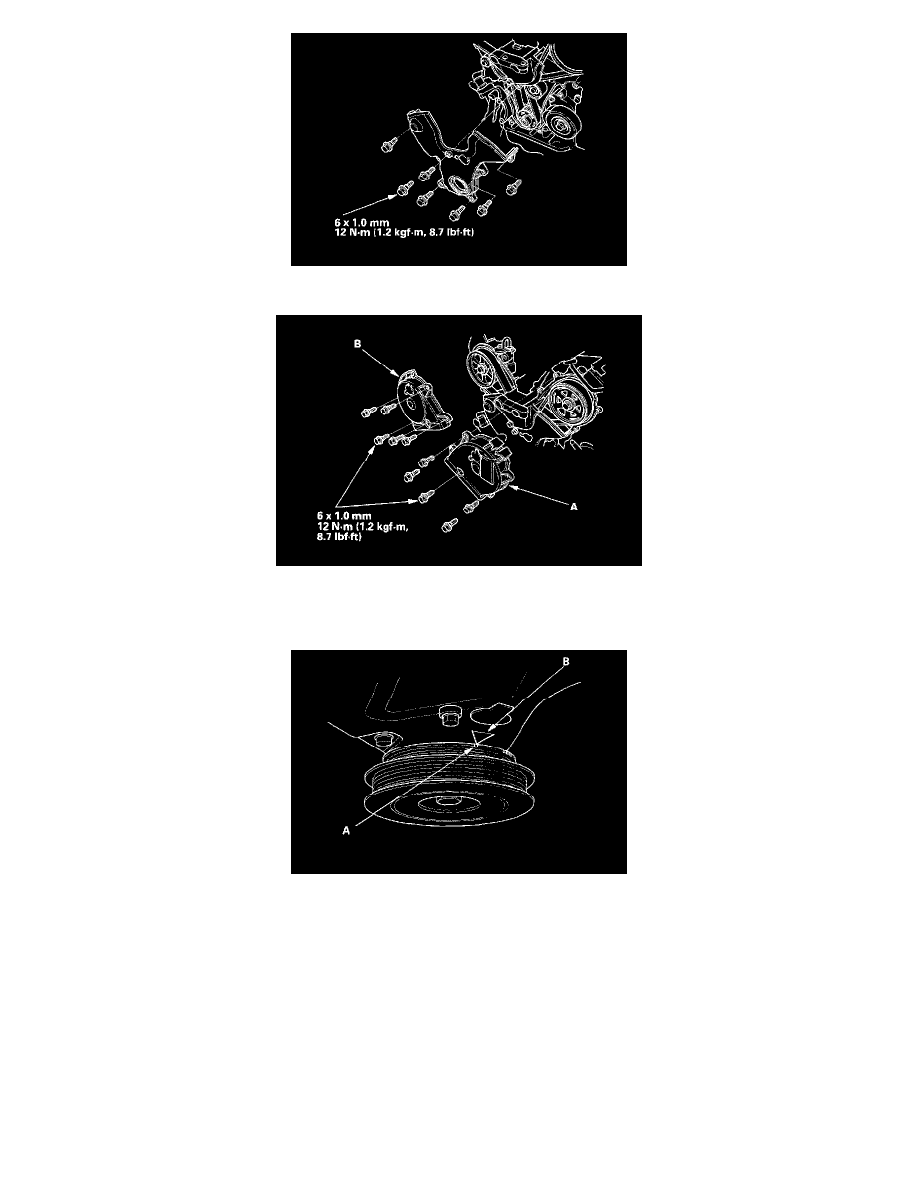

10. Install the lower cover.
11. Install the front upper cover (A) and rear upper cover (B).
12. Install the crankshaft pulley.
13. Rotate the crankshaft pulley about five or six turns clockwise so the timing belt positions on the pulleys.
14. Turn the crankshaft pulley so its white mark (A) lines up with the pointer (B).
