Balance Shaft Belt: Specifications (page 4 of 9)

Make

Honda

Model

Prelude

Engine

L4-2.2L SOHC

Year

1994

Section

Balance Shaft Belt

MaintenanceSpecifications · page 4 of 9

Balance Shaft Belt: Service and Repair

TIMING BALANCER BELT REPLACEMENT

NOTE:  Turn the crankshaft so that the No.1 cylinder is at TDC.

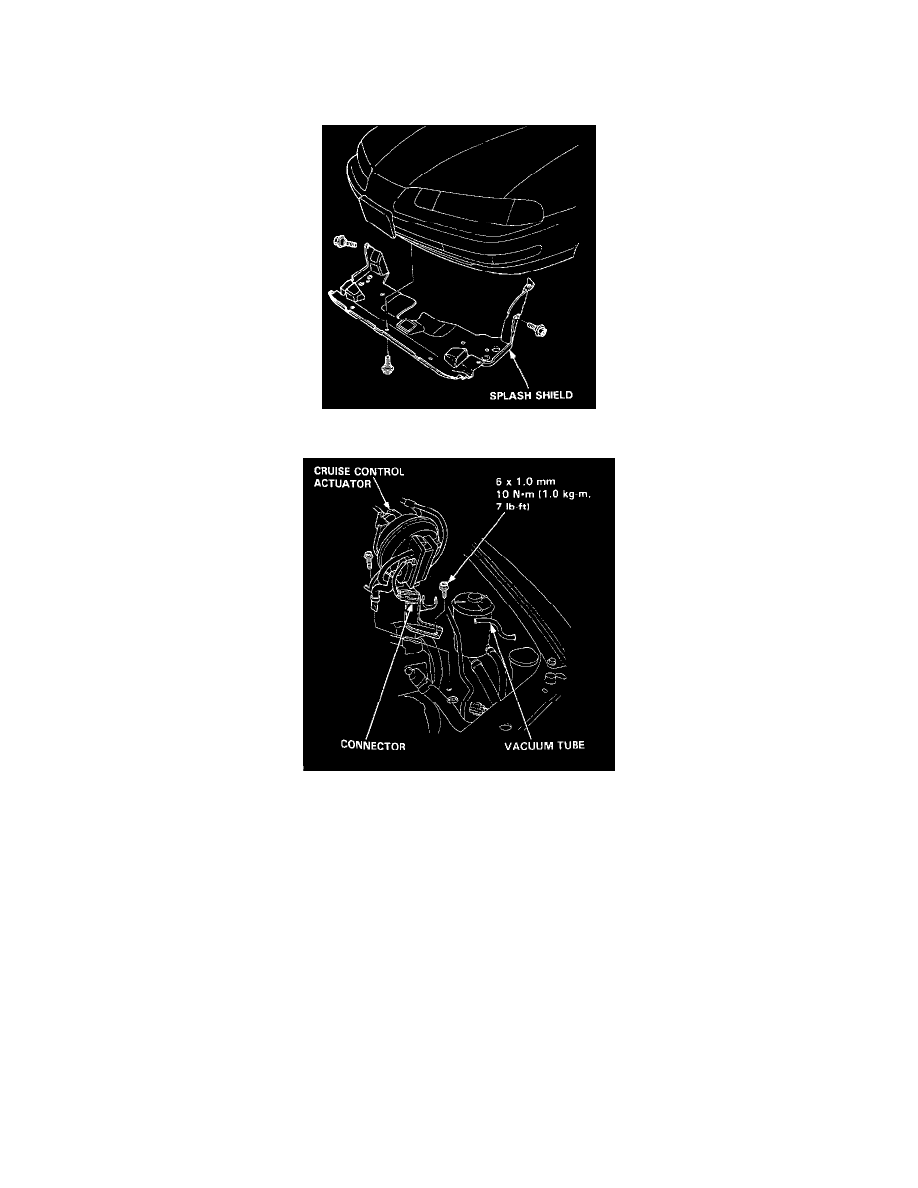

1. Remove the splash shield.

2. Disconnect the connector, then remove the cruise control actuator.

NOTE:
-

Do not disconnect the control cable.

-

Take care not to bend the cable when removing the actuator. Always replace a kinked cable with a new one.
