Timing Belt: Specifications (page 11 of 13)
- Make
- Honda
- Model
- Prelude
- Engine
- L4-2.2L SOHC
- Year
- 1994
- Section
- Timing Belt
MaintenanceSpecifications · page 11 of 13
NOTE: Install the timing belt with the No. 1 piston at Top Dead Center (TDC) on the compression stroke.
20. Perform the timing belt tension adjustment.
21. Tighten the 6 x 1.0 mm bolt to lock the timing belt adjuster arm.

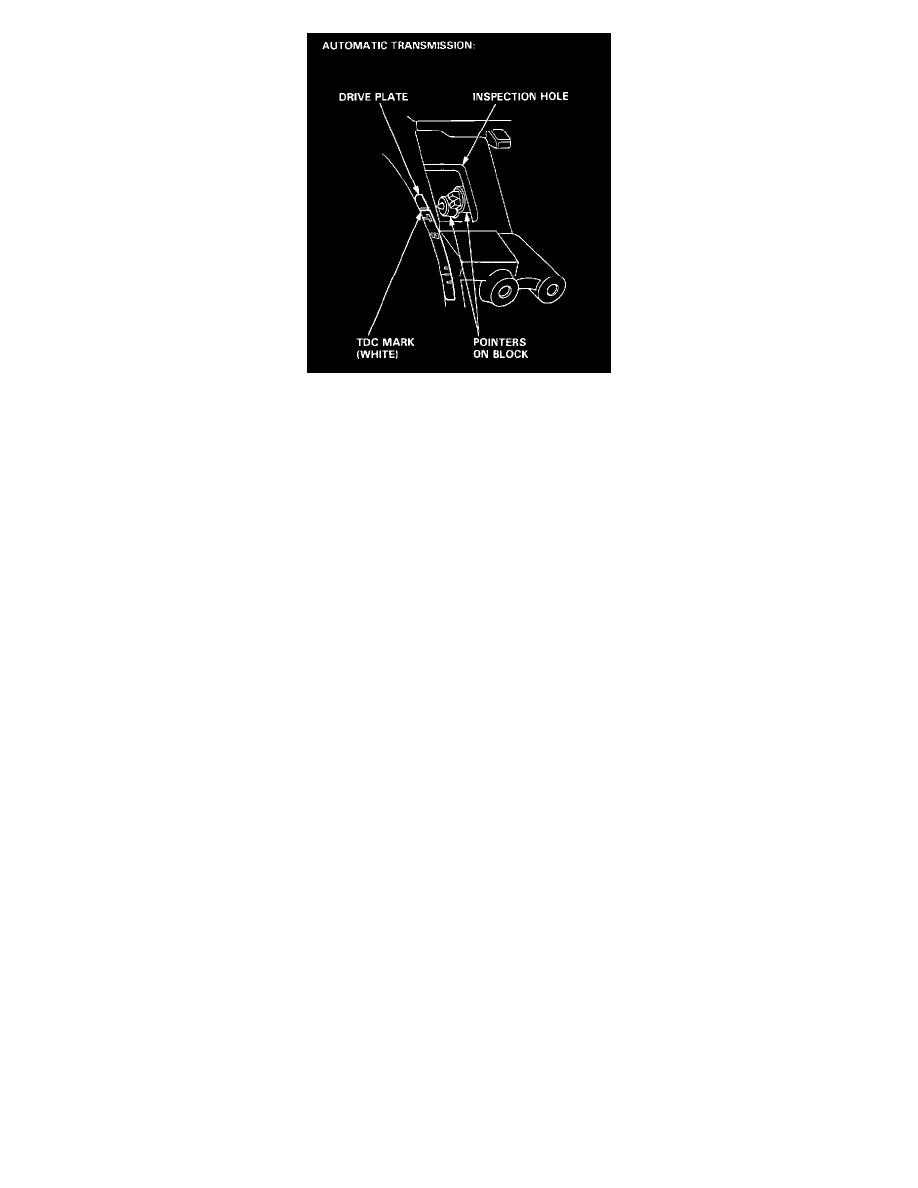

22. Make sure the crankshaft is positioned with the No. 1 cylinder at TDC.
