Ridgeline V6-3.5L (2006)

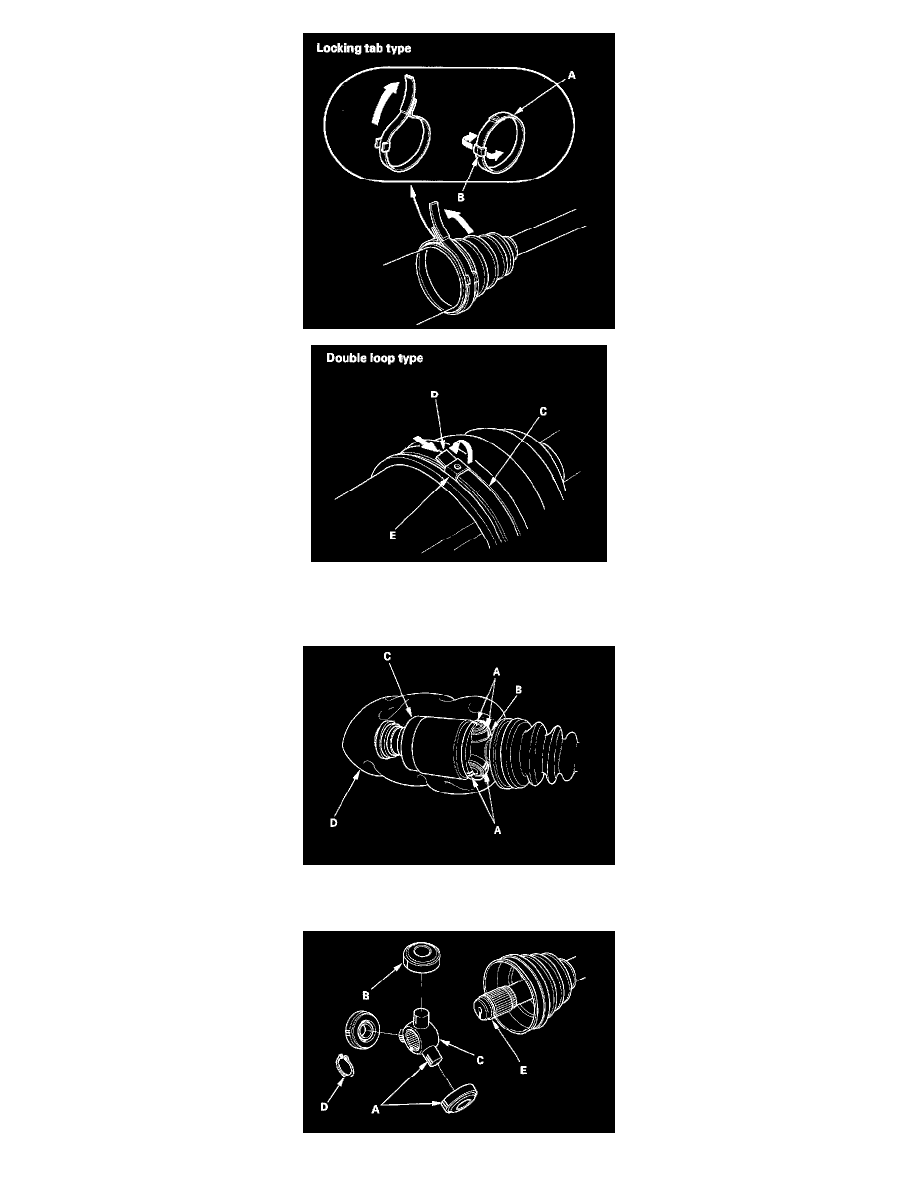

2. Remove the boot bands. Be careful not to damage the boot.
^
If the boot band is a locking tab type (A), pry up the locking tab (B) with a screwdriver, and lift up the end of the band.
^
If the boot band is a double loop type (C), lift up the band end (D), and push it into the clip (E).
3. Make a mark (A) on each roller (B) and inboard joint (C) to identify the locations of rollers and grooves in the inboard joint. Then remove the
inboard joint on the shop towel (D). Be careful not to drop the rollers when separating them from the inboard joint.
