Ridgeline V6-3.5L (2006)

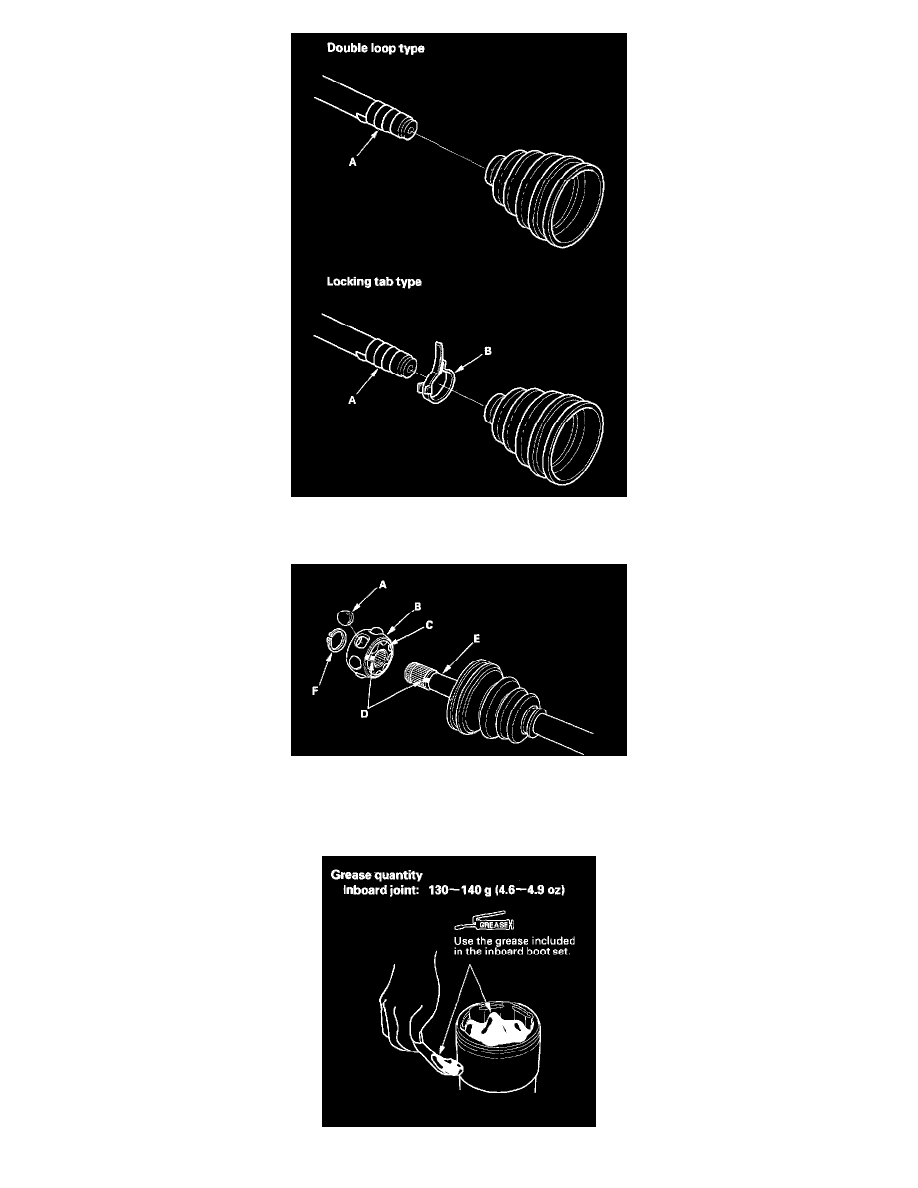

1. Wrap the splines with vinyl tape (A) to prevent damage to the inboard boot. Double loop type Locking tab type
2. Install the inboard boot and boot band (B) on the driveshaft, then remove the vinyl tape. Be careful not to damage the inboard boot.
3. Install the steel balls (A) and the bearing retainer (B) onto the bearing race (C) by aligning the-marks (D) on the bearing retainer and the bearing
race.
4. Install the bearing onto the driveshaft (E) by aligning the marks on the bearing and the driveshaft.
5. Install the snap ring (F).
