Ridgeline V6-3.5L (2006)

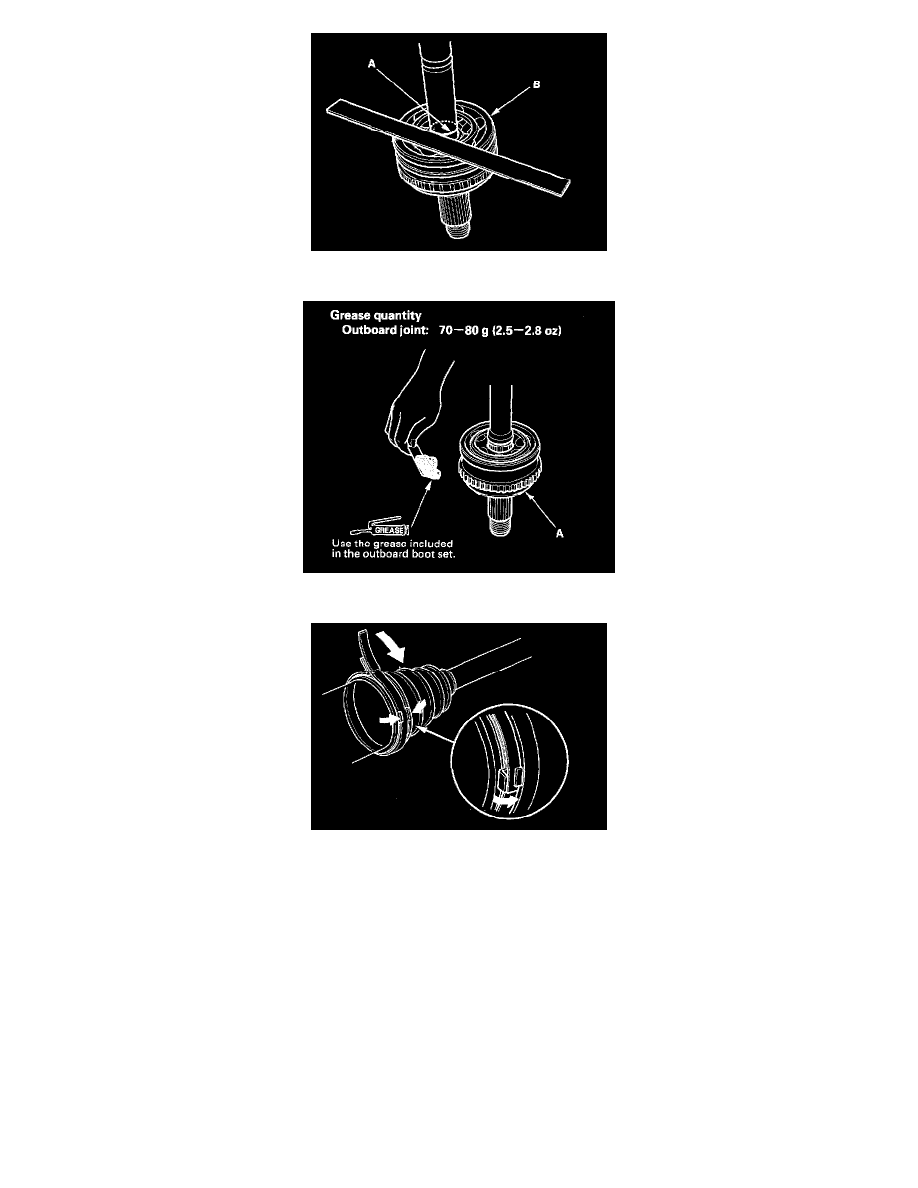

6. Check the alignment of the paint mark (A) with the outboard joint end (B).
7. Pack the outboard joint (A) with the joint grease included in the new joint boat set.
8. Install a new locking tab type boot band on the outboard joint side of the outboard boot. Fold down the locking tabs.
9. Lightly tap on the doubled-over portions to secure them in place.
10. Install a double loop type boot band on the front driveshaft side of inboard boot.
Rear Driveshaft Installation
Rear Driveshaft Installation
NOTE: Before starting installation, make sure the mating surfaces of the joint and the splined section are free from dirt or dust.
