S2000 L4-2.2L (2004)
Drive Belt: Service and Repair
Alternator-compressor Belt Inspection and Replacement

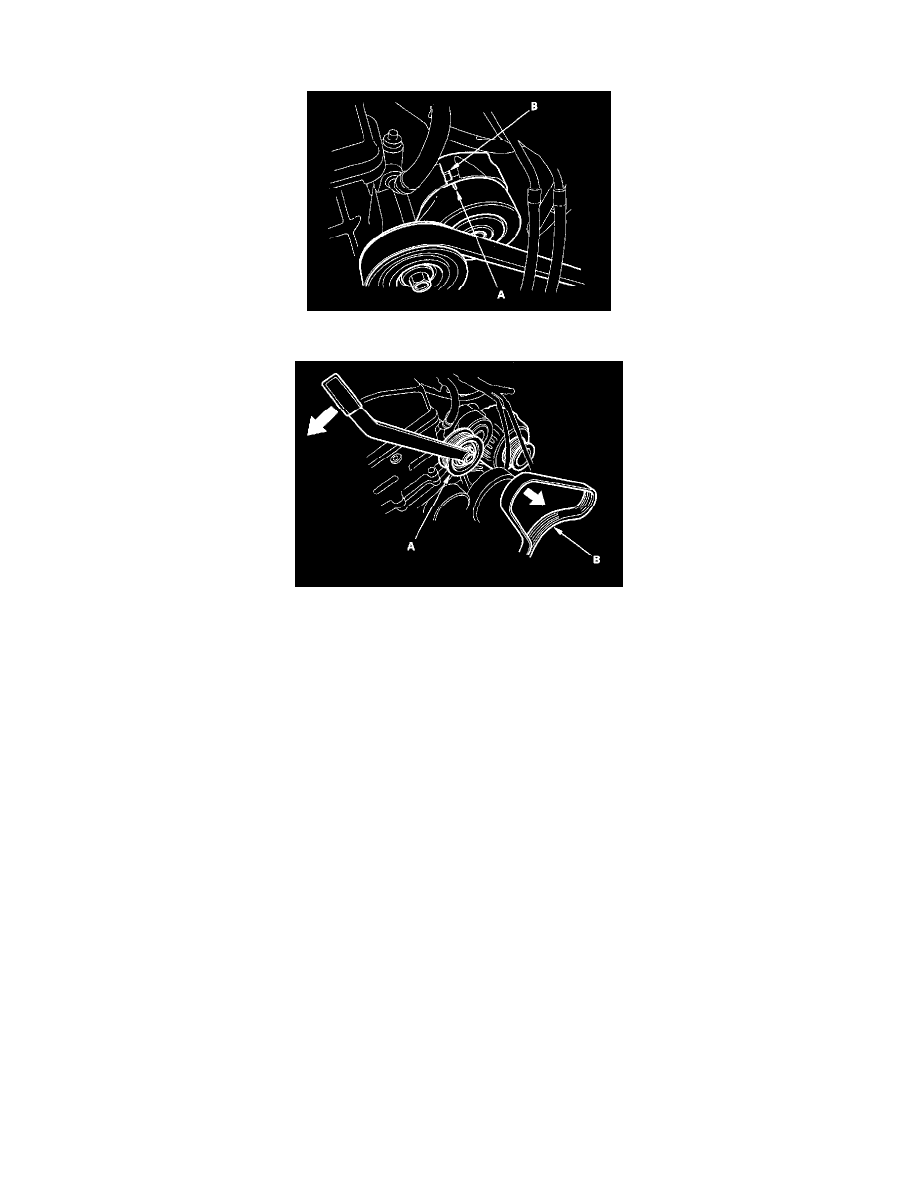

1. Check that the pointer (A) on the auto-tensioner housing is not beyond the edge of the indicator rib (B) on the tensioner base.
2. Move the auto-tensioner (A) to relieve tension from the alternator belt (B), and remove the alternator-compressor belt.
3. Install the new belt in the reverse order of removal.
