Windshield: Specifications (page 7 of 9) – Hyundai Accent L4-1.6L (2003)

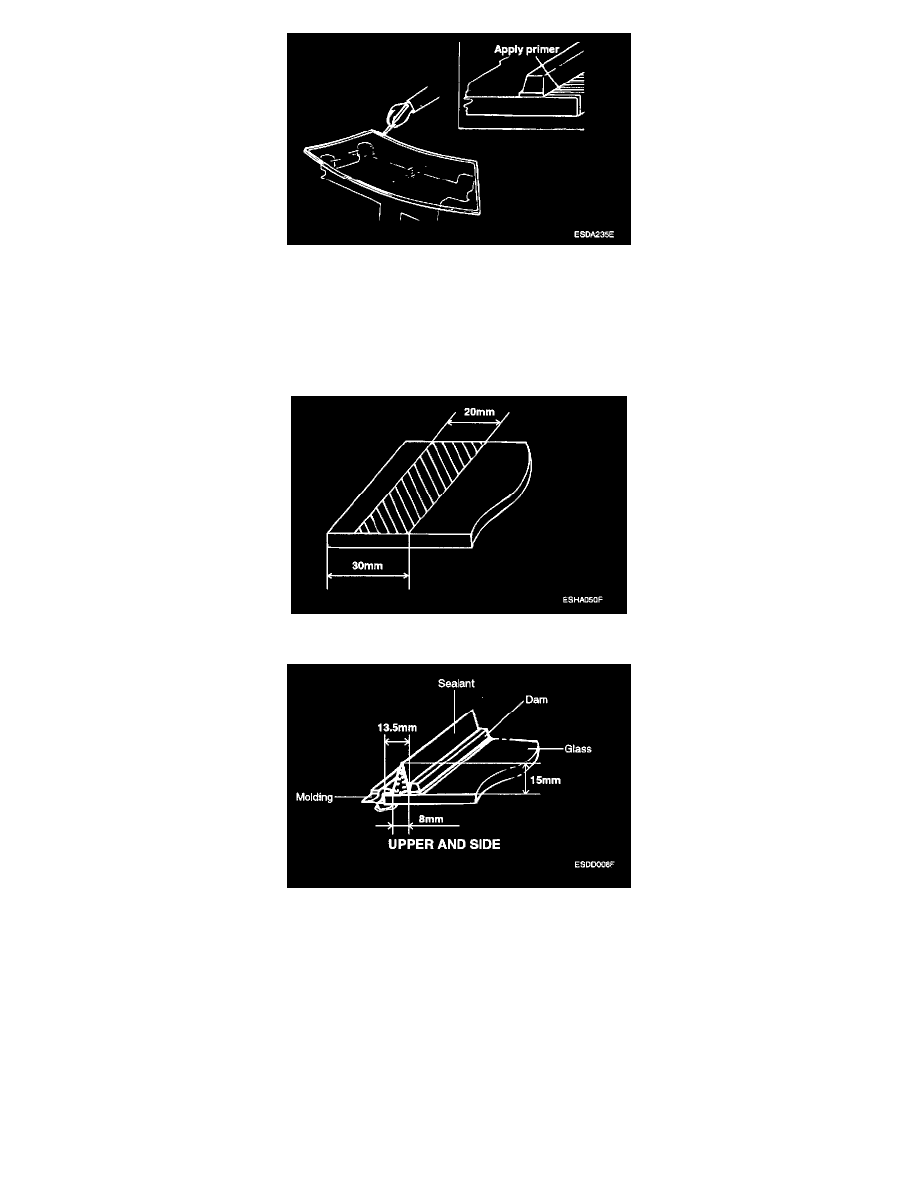

7. Apply a light coat of glass primer to the outside of the dam.

NOTE:

1. Never touch the surface applied primer with your hand.

If you do, the adhesive may not bond to the glass properly, causing a leak after the windshield glass is installed.

2. Do not apply body primer to the glass.
3. Keep water, dust, and abrasive materials away from the surface applied primer

8. Apply a primer to the lower glass as shown.

9. Apply a sealant around the edge of the glass.

NOTE:  Apply the adhesive within 5 minutes after applying the primer to the glass.
