Accent GS Coupe L4-1495cc 1.5L SOHC MFI (1999)
Compressor Clutch: Service and Repair

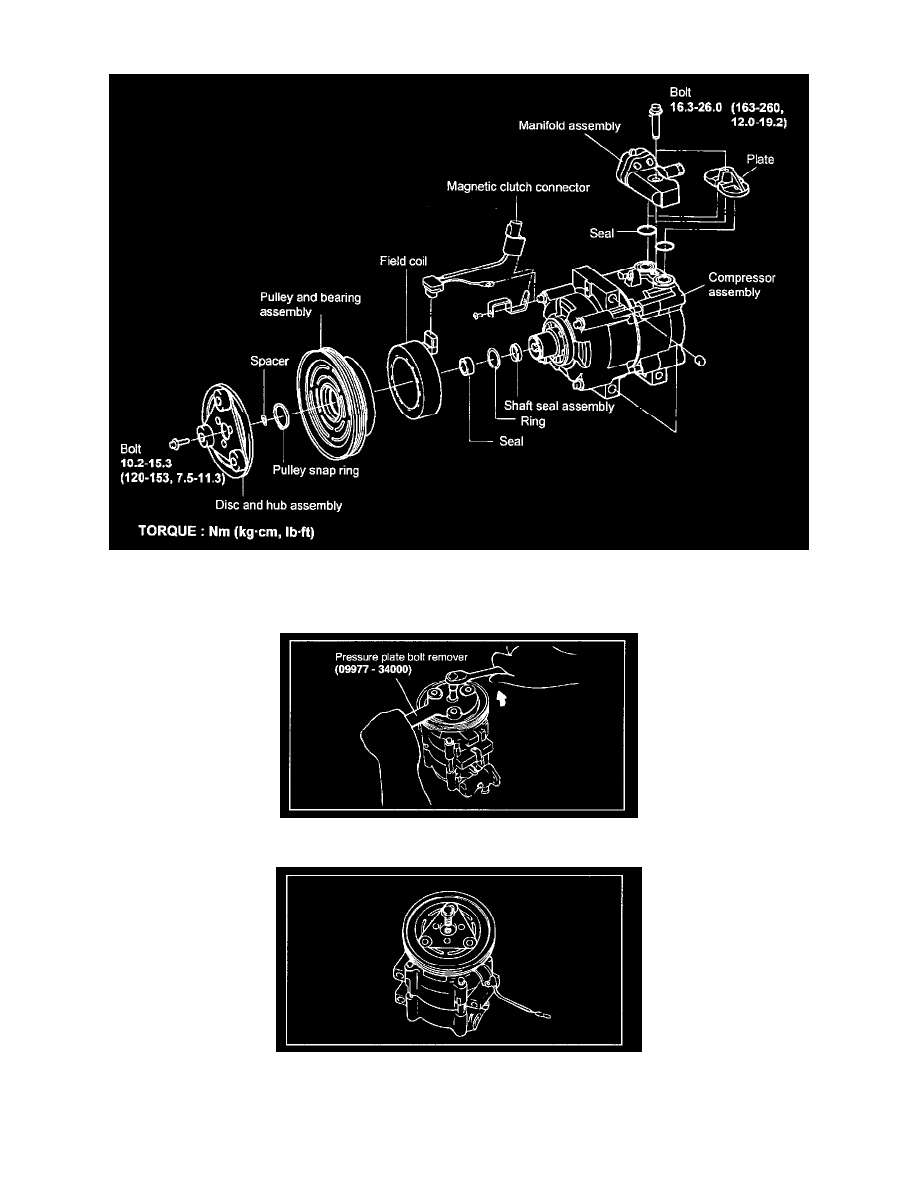

COMPONENTS
DISASSEMBLY
1. Remove the clutch hub retaining bolt with the aid of a spanner wrench.
2. Pull the clutch hub and shims from the compressor shaft. If the hub cannot be pulled from the compressor shaft, screw an 8 mm bolt into the shaft
hole of the clutch hub to force the hub from the shaft.
