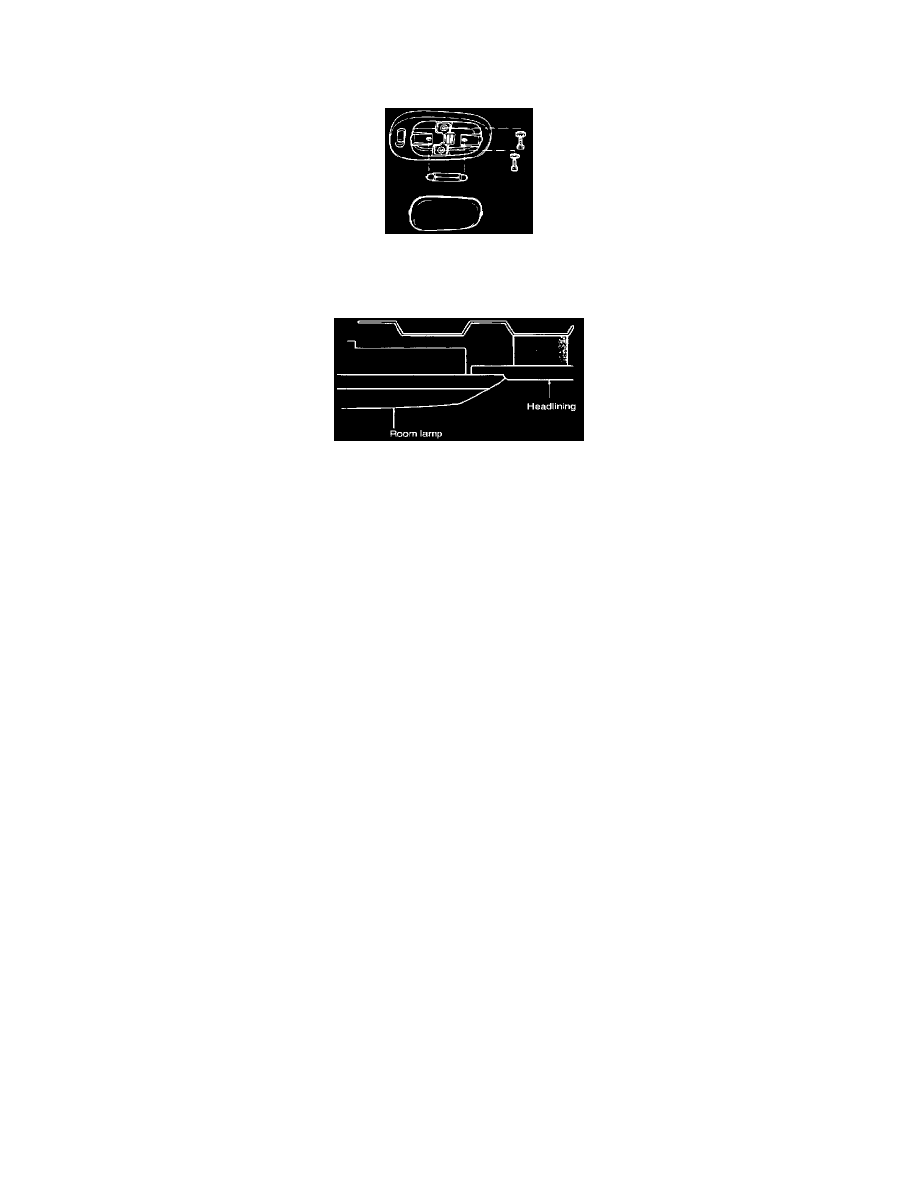

Courtesy Lamp: Service and Repair

1. Disconnect the battery negative terminal.
2. Using a screwdriver, detach the room lamp lens.

3. Remove the lamp assembly from the head lining by loosening 2 screws.
4. Disconnect the connector from the roof harness.
5. Installation is reverse order of removal.

6. While installing, check whether there is gap or not in between the contact and the head lining assembly.
