Combination Switch: Service and Repair

1. Disconnect the battery ground cable.
2. Remove the steering wheel.
3. Remove the steering column shroud.
4. Disconnect the harness connectors.
5. Remove the 3 straps.

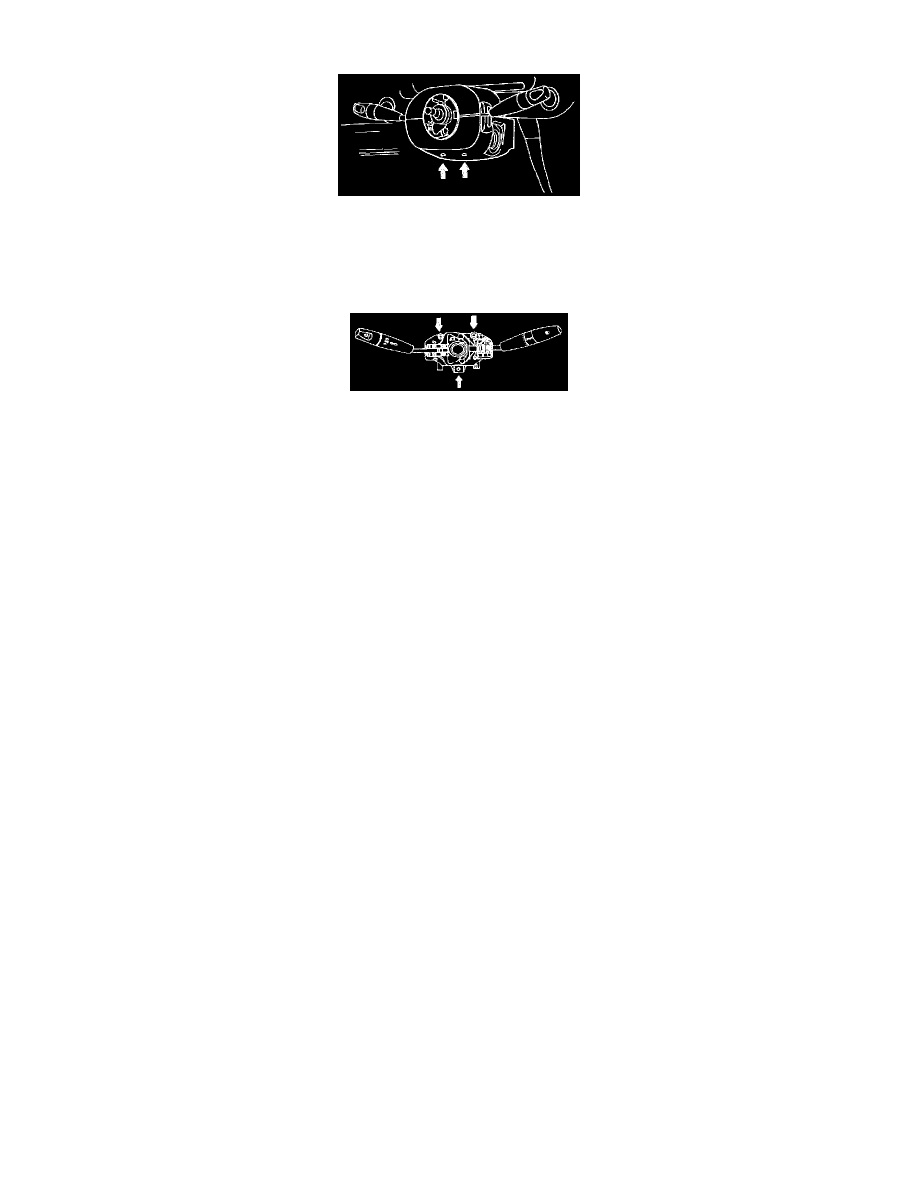

6. Remove the multifunction switch assembly by loosening the 4 screws shown in the illustration.
7. Installation is the reverse order of the removal procedure.
