Page 5
background image

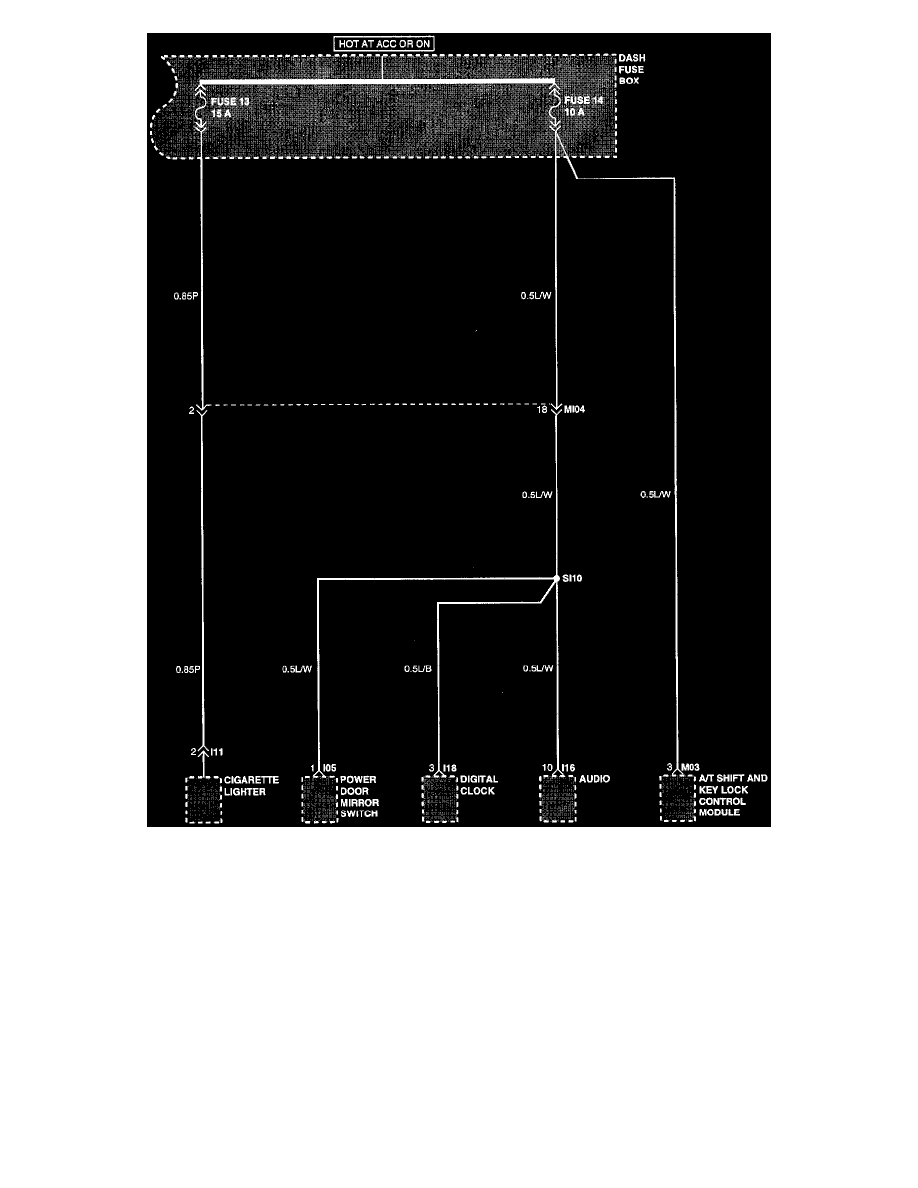

Dash Fuse Box Details (Part 5 Of 5)

Connector Configurations Are Found In The Diagram Section Of The Vehicle.

Connector Locations Are Found In The Locations Section Of The Fuse Block.
See: Locations
