Accent GS Coupe L4-1495cc 1.5L SOHC MFI (1999)
ACTUATOR INSPECTION
1. Disconnect the connector at the idle speed control actuator.

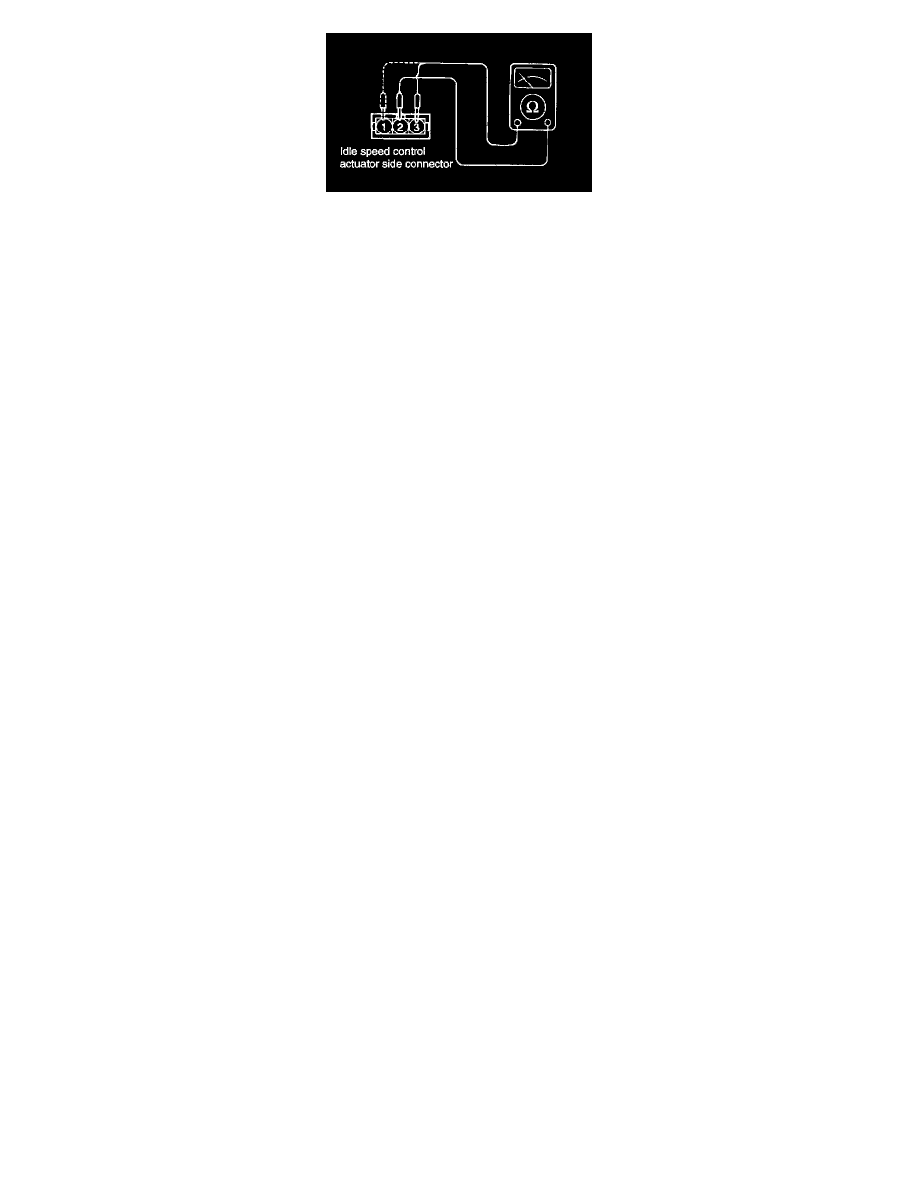

2. Measure the resistance between terminals.
Standard value:
Terminal 1 and 2 10.5 - 14 Ohm
Terminal 2 and 3 10 - 12.5 Ohm [at 20 °C (68 °F)]
3. Connect the connector at the idle speed control actuator.
