Accent GS Coupe Coolant Temperature Sensor/Switch (For Computer) - Component Diagrams
Harness Layout

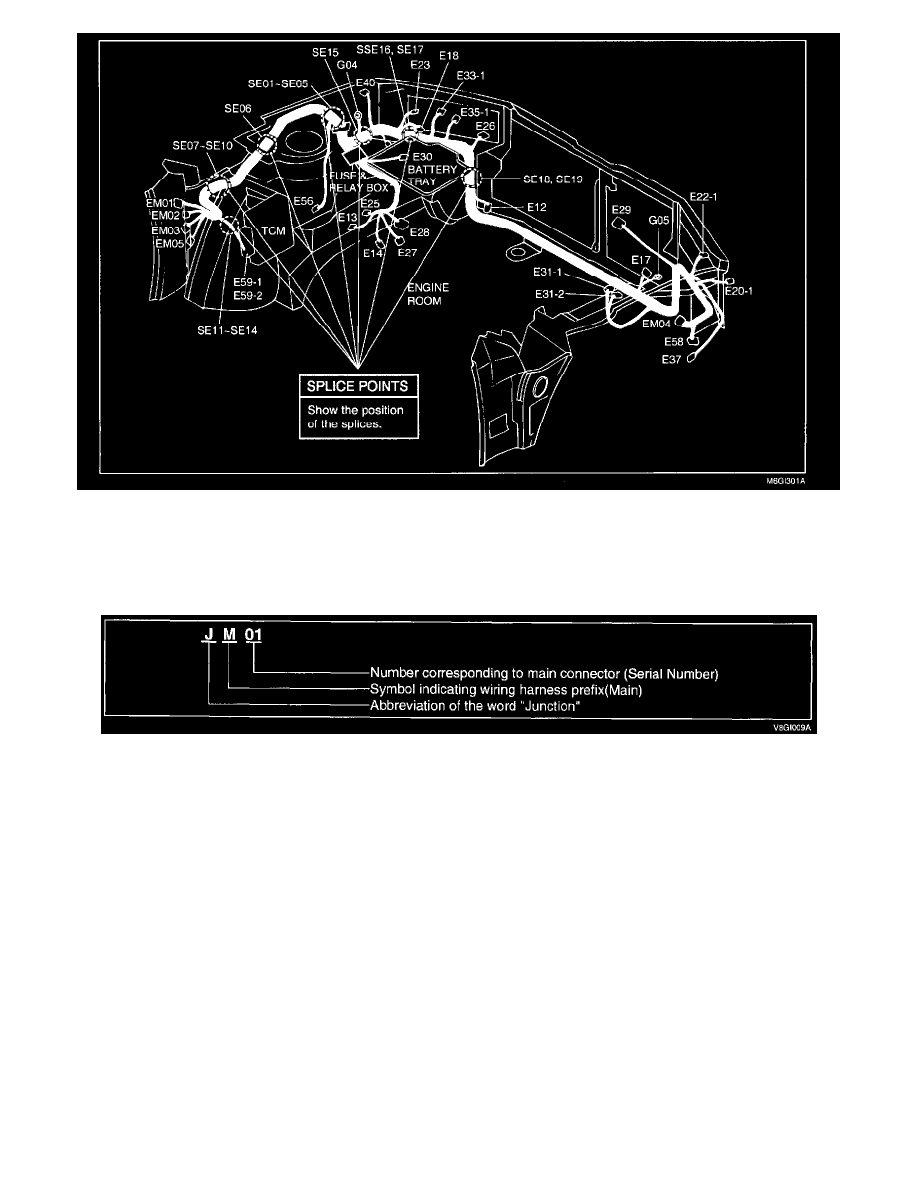

Harness layouts show the routing of the major wiring harnesses, the in-line connectors and the splices between the major harnesses. These layouts will
make electrical troubleshooting easier.
Junction Block Identification
A junction block identification symbol consists of a wiring harness location classification symbol corresponding to each wiring harness location and
number peculiar to the connector in the junction block.
Key to Wiring Diagrams and Symbol I.D.
The symbols and the abbreviations explained here are used throughout the database.
