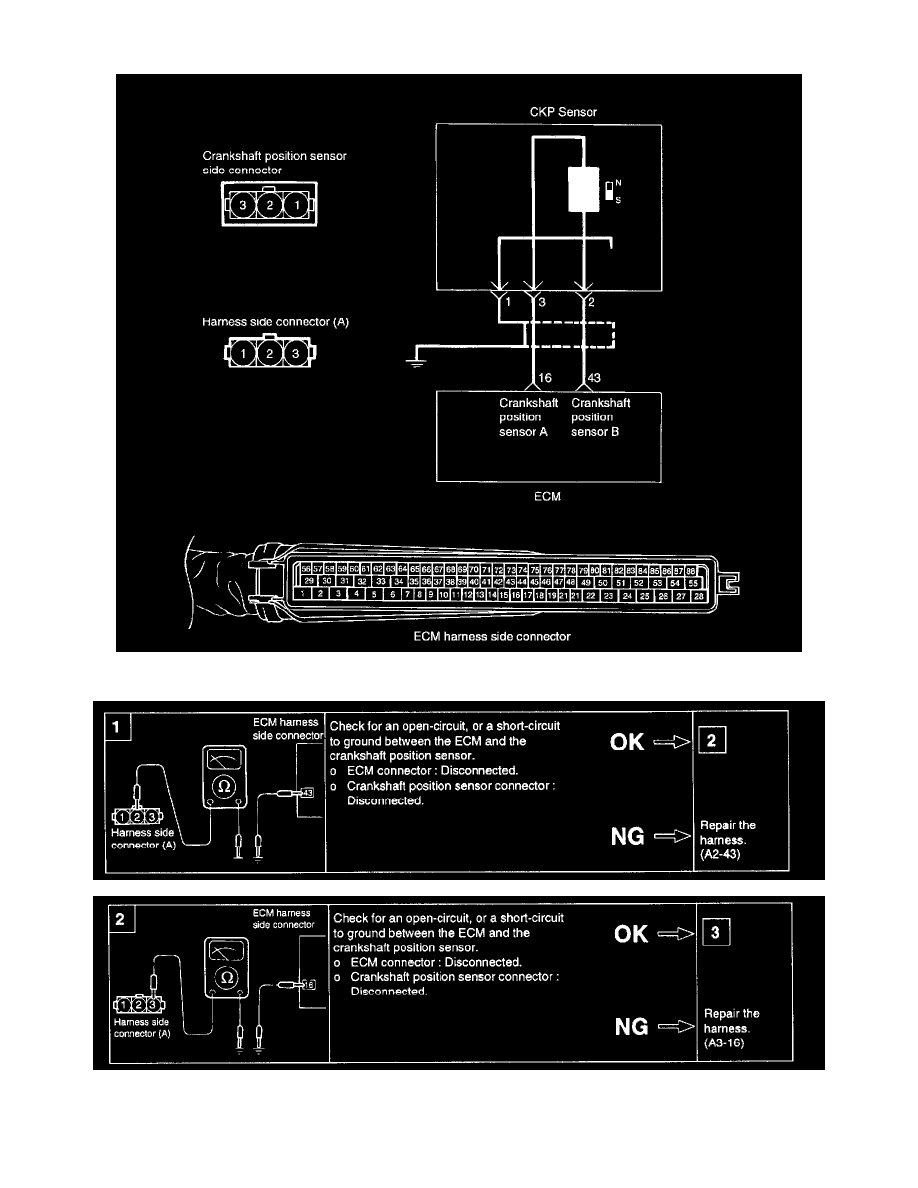

Crankshaft Position Sensor: Testing and Inspection

CIRCUIT DIAGRAM

Powertrain Management
Computers and Control Systems
Sensors and Switches - Computers and Control Systems
Crankshaft Position Sensor / Component Information
Diagrams
Page 3825
