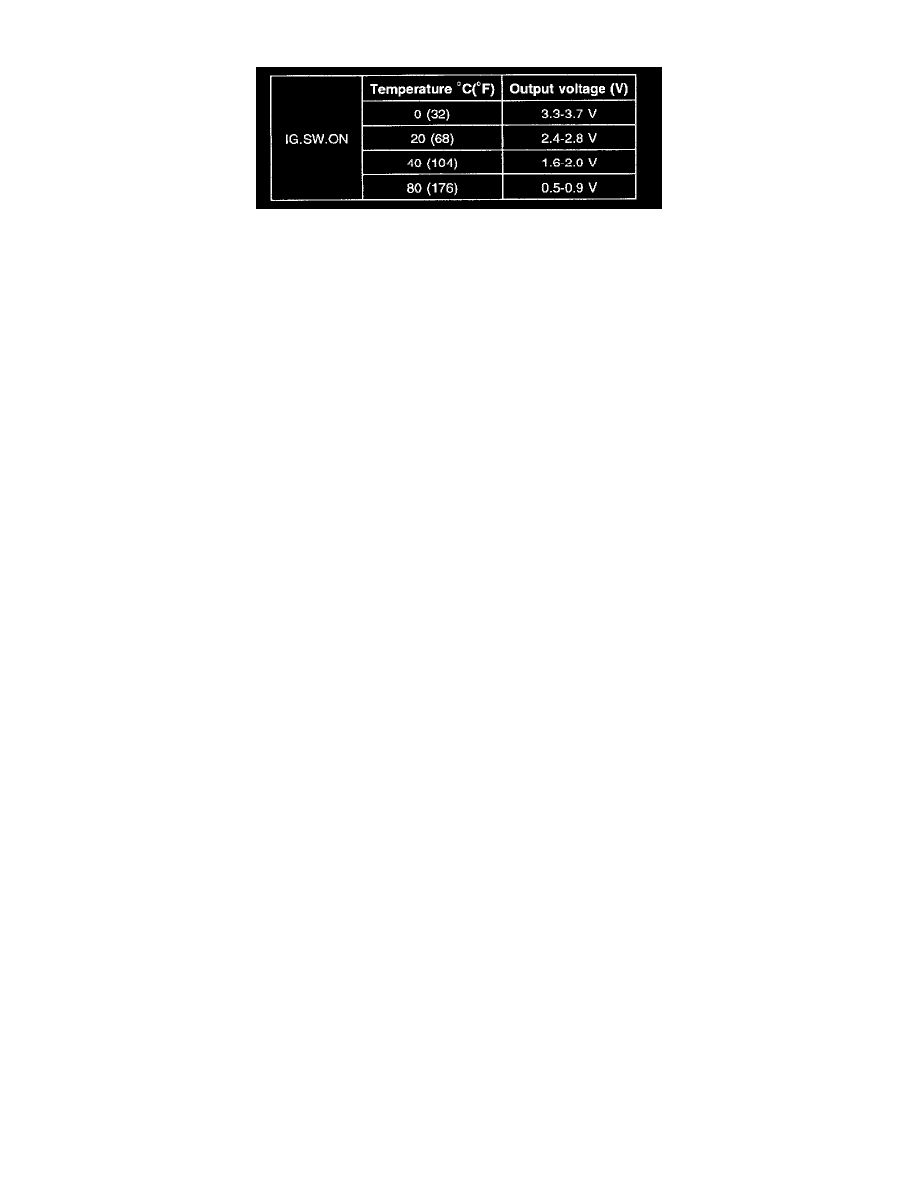

1. Using the voltmeter, measure the sensor voltage.

2. Measure the voltage between the IAT sensor terminal 1 and 2.
3. If the voltage deviates from the standard value, replace the intake air temperature sensor assembly.
