Accent GS Coupe L4-1495cc 1.5L SOHC MFI (1999)

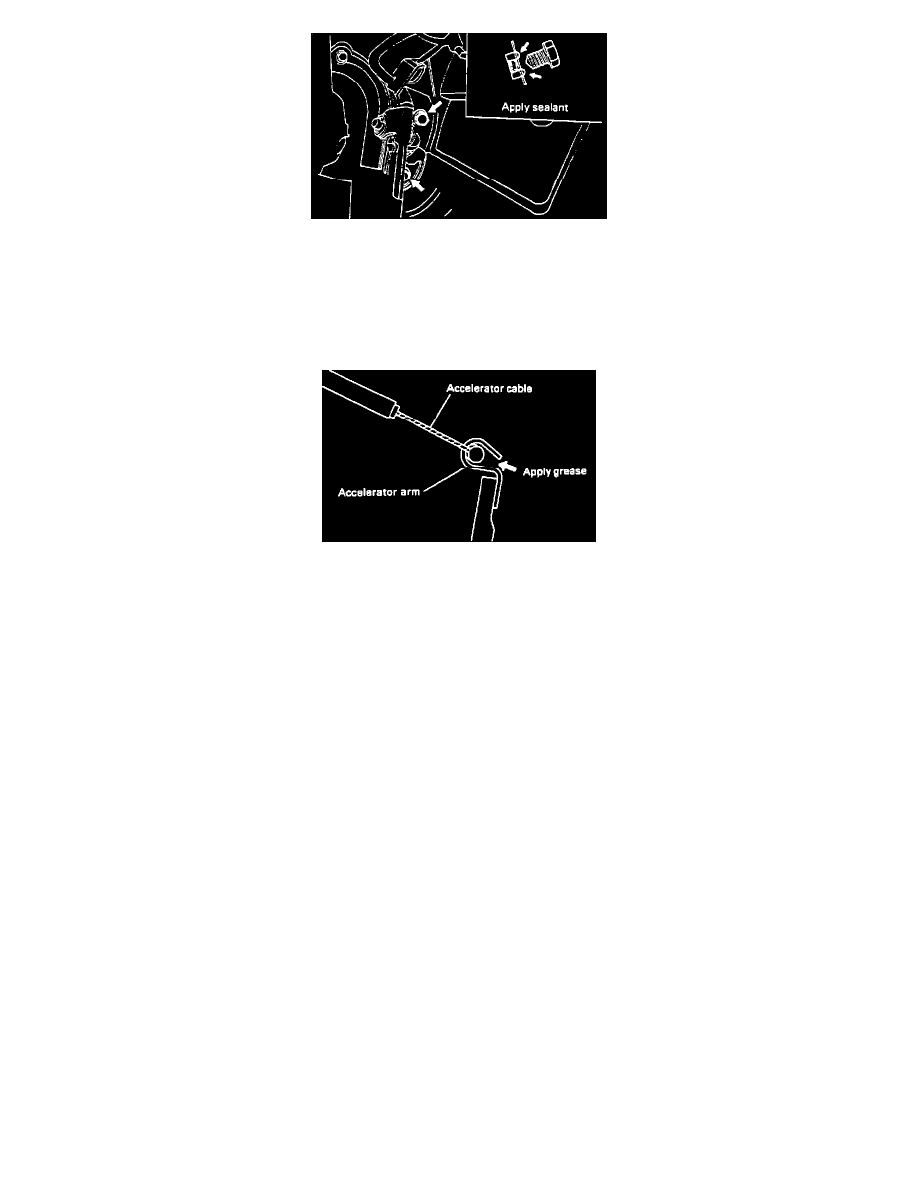

Accelerator Bracket Sealant Points

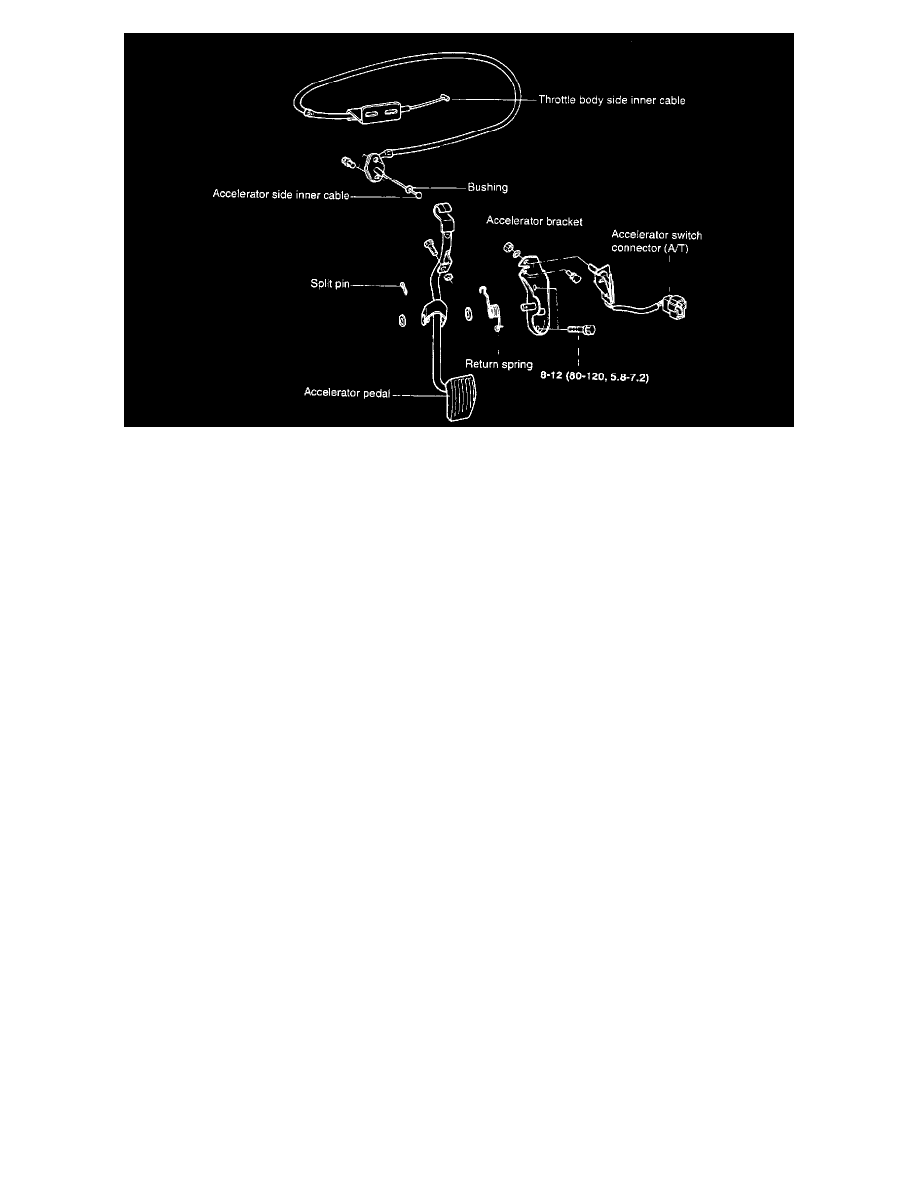

INSTALLATION
1. When installing the return spring and accelerator arm, apply multi-purpose grease around each moving point of the accelerator arm.
2. Apply sealant to the bolt mounting hole, and tighten the accelerator arm bracket.
Tightening torque: Accelerator arm bracket bolts 8-12 Nm (80-120 kg cm, 5.8-7.2 lbf)
Accelerator Cable, Pedal End Grease Point
3. Securely install the resin bushing of the accelerator cable on the end of the accelerator arm.
4. Apply multipurpose grease around the cable end.
