Ignition Switch: Testing and Inspection
Ignition Switch-ST [M/T]

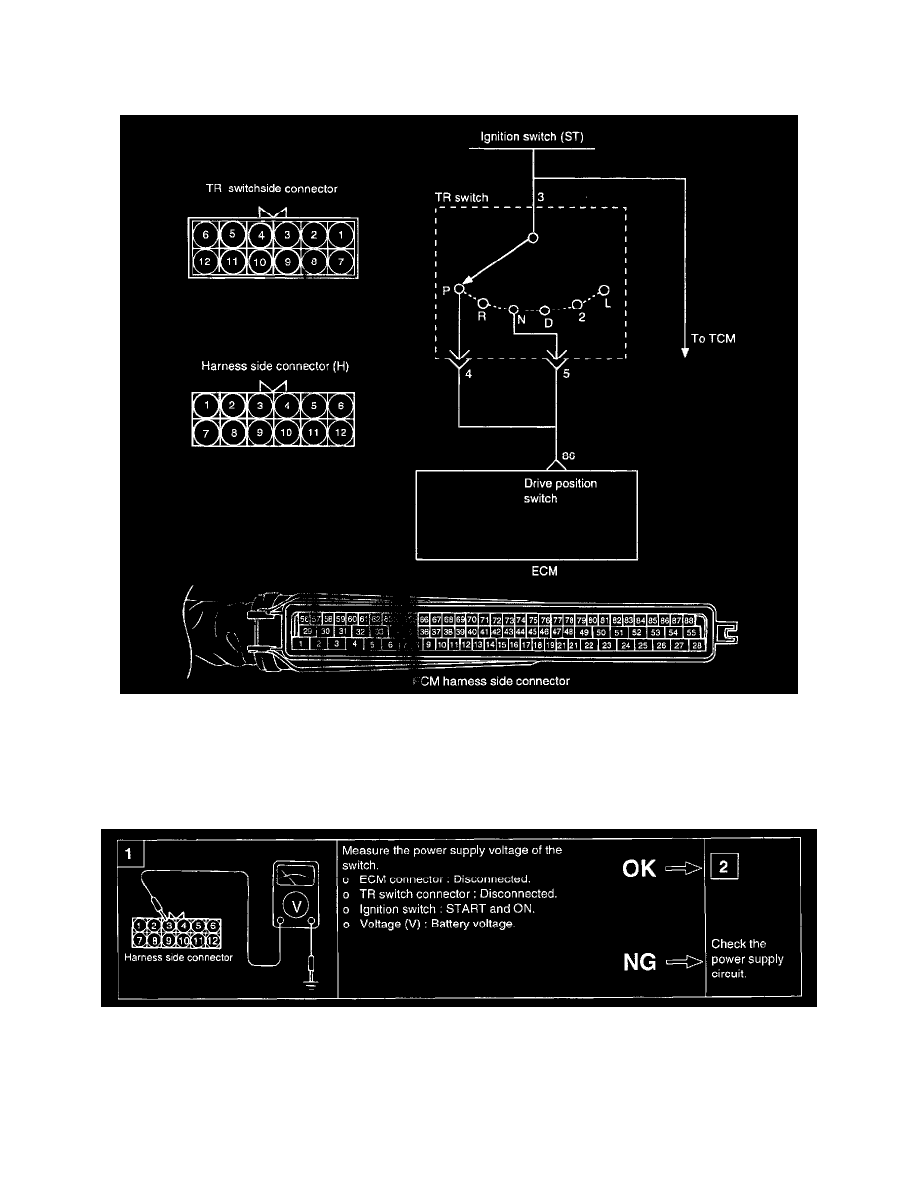

CIRCUIT DIAGRAM

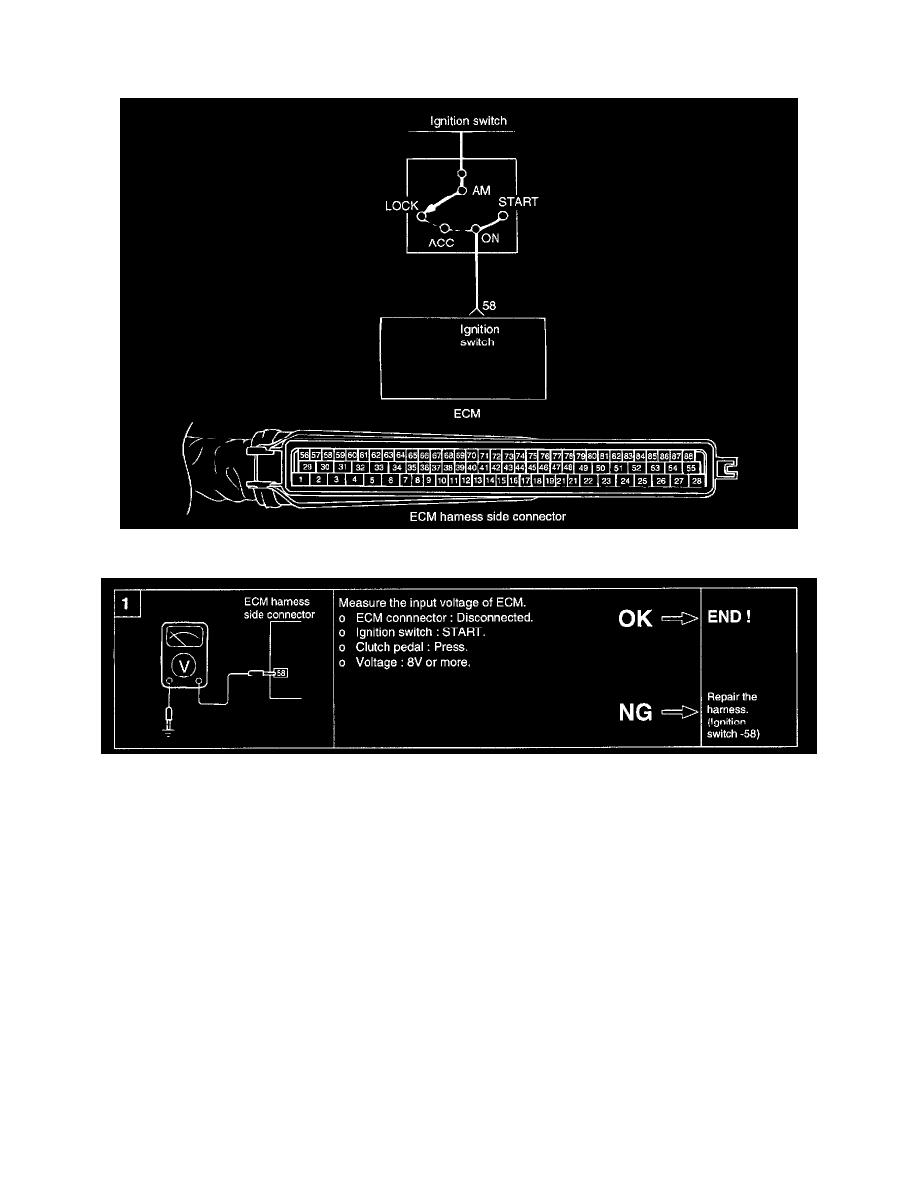

HARNESS INSPECTION

Powertrain Management
Ignition System
Sensors and Switches - Ignition System
Ignition Switch / Component Information
Testing and Inspection
Ignition Switch-ST [M/T]
