Page 2

background image

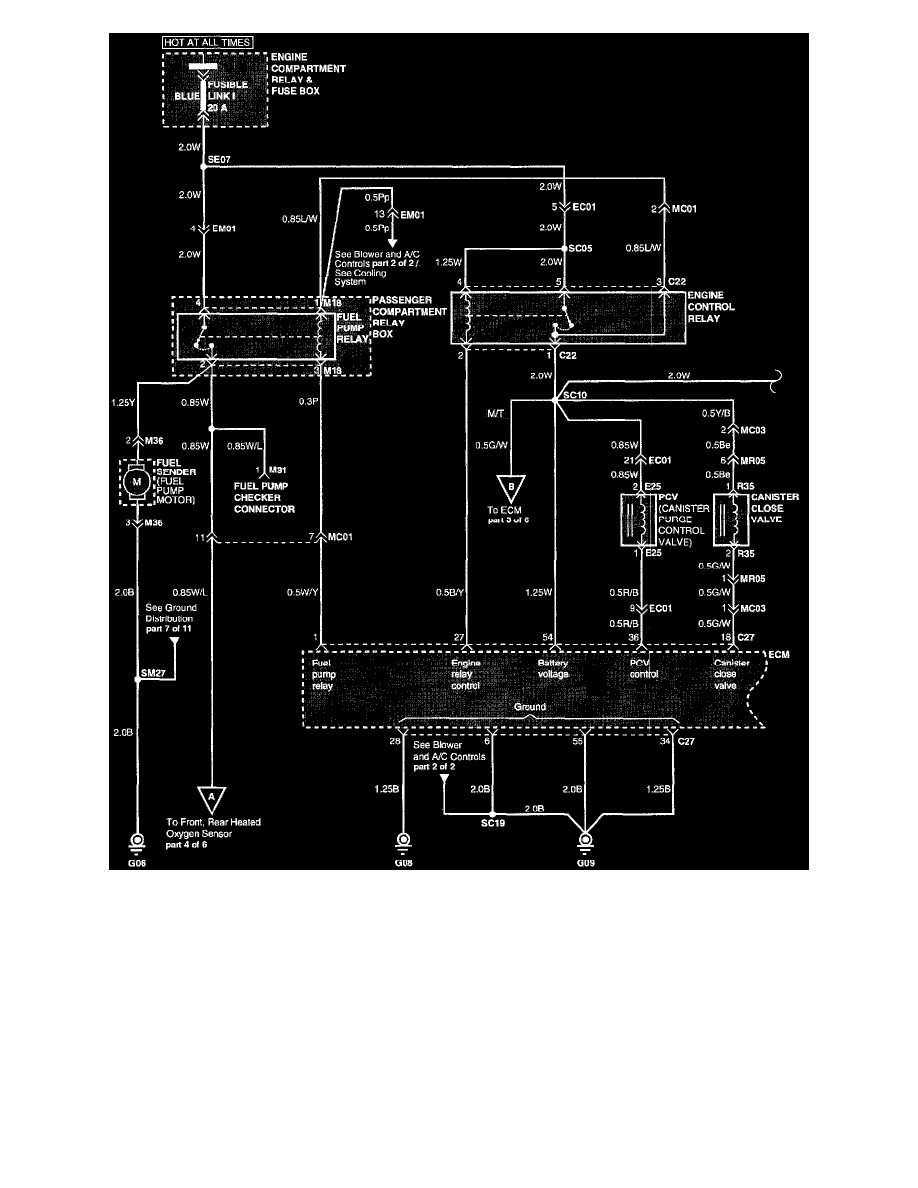

Engine Control System (Part 1 Of 6)

Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Engine Control Module / Component Information
Diagrams / Diagram Information and Instructions
Page 2465
