Main Relay (Computer/Fuel System): Testing and Inspection

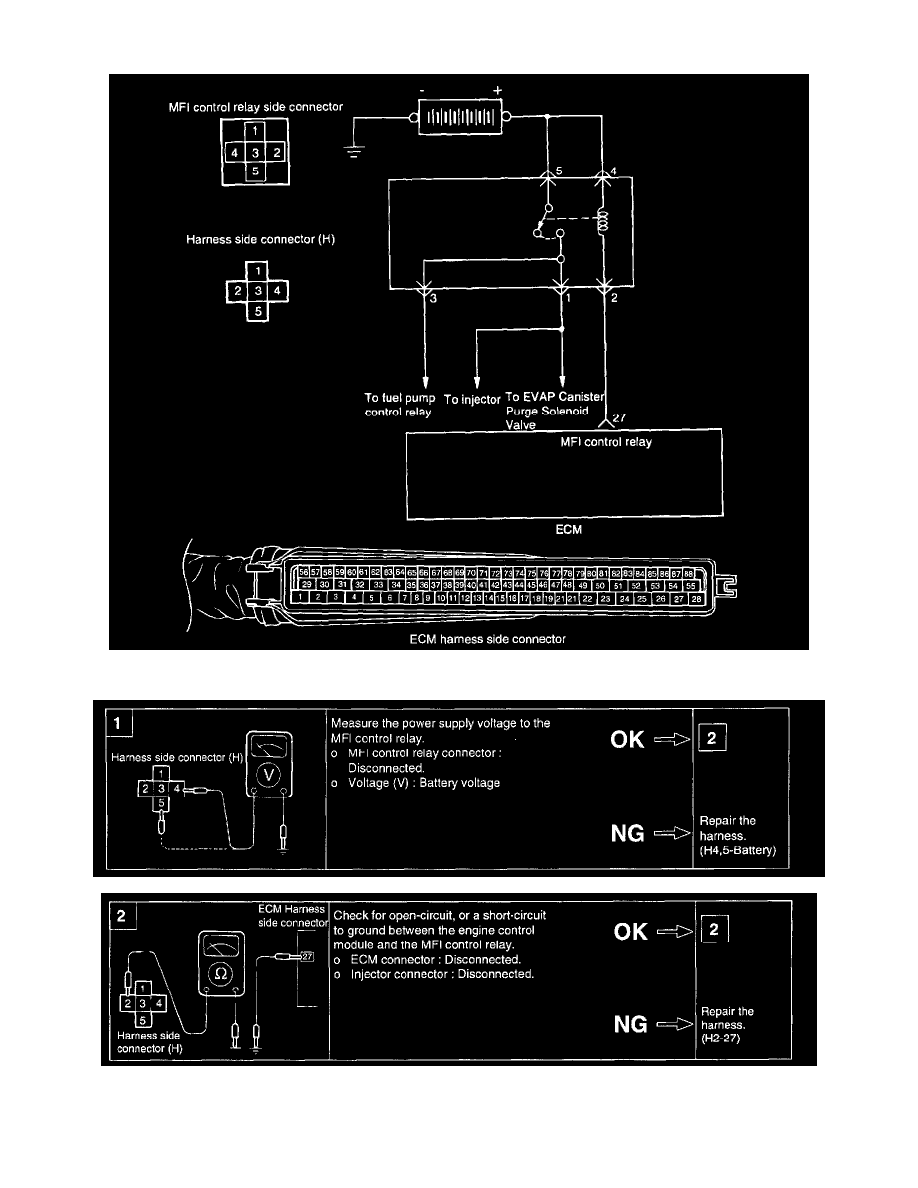

CIRCUIT DIAGRAM

HARNESS INSPECTION PROCESSOR

MFI CONTROL RELAY INSPECTION
