Accent GS Coupe L4-1495cc 1.5L SOHC MFI (1999)
System voltage 5 V At accelerate Max. 4.5, Min. 0.5 V
3. At idle, inspect that voltage fluctuates up to accelerate rpm up and down.
NOTE: If voltage is not within specifications, there is leakage. Inspect the fuel tank and hoses toward canister and fuel neck. Then repair or
replace relevant parts.

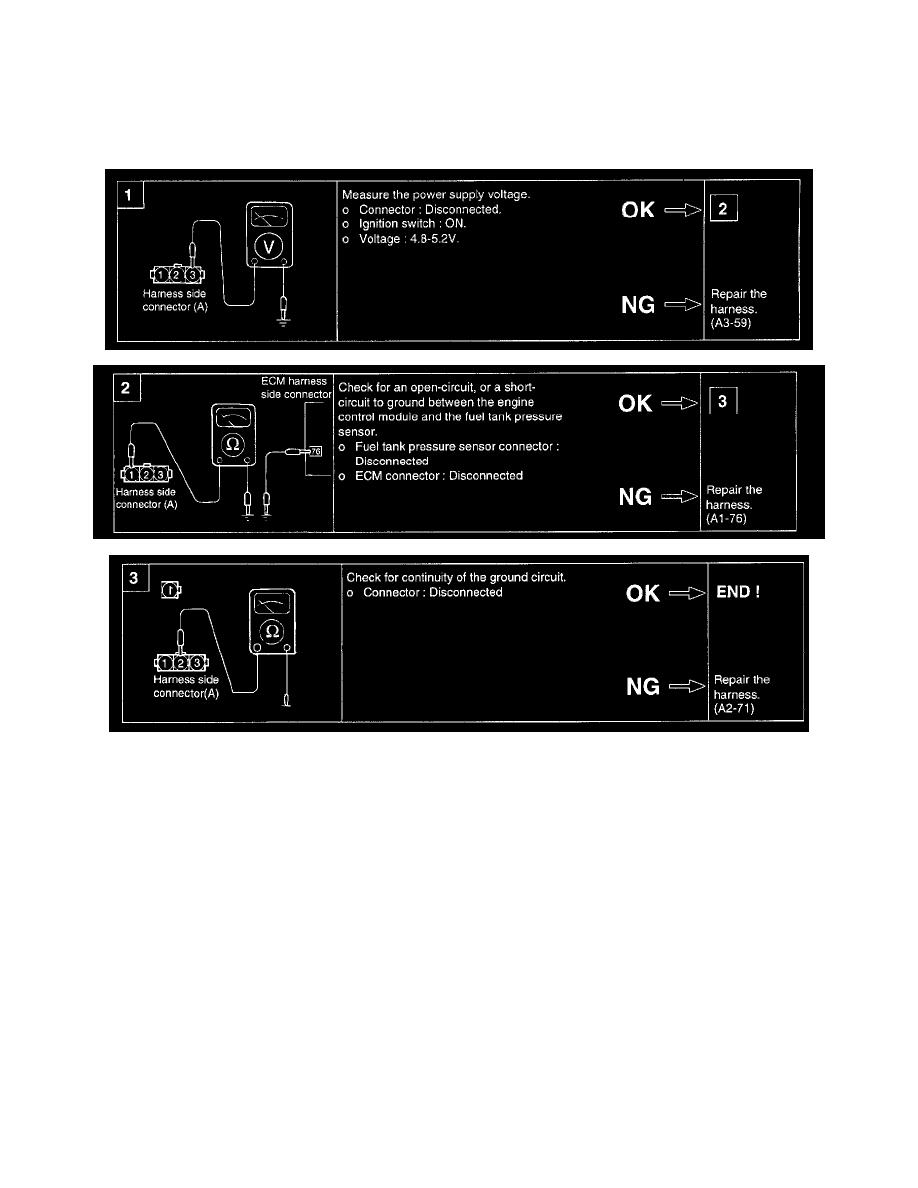

HARNESS INSPECTION PROCEDURES
