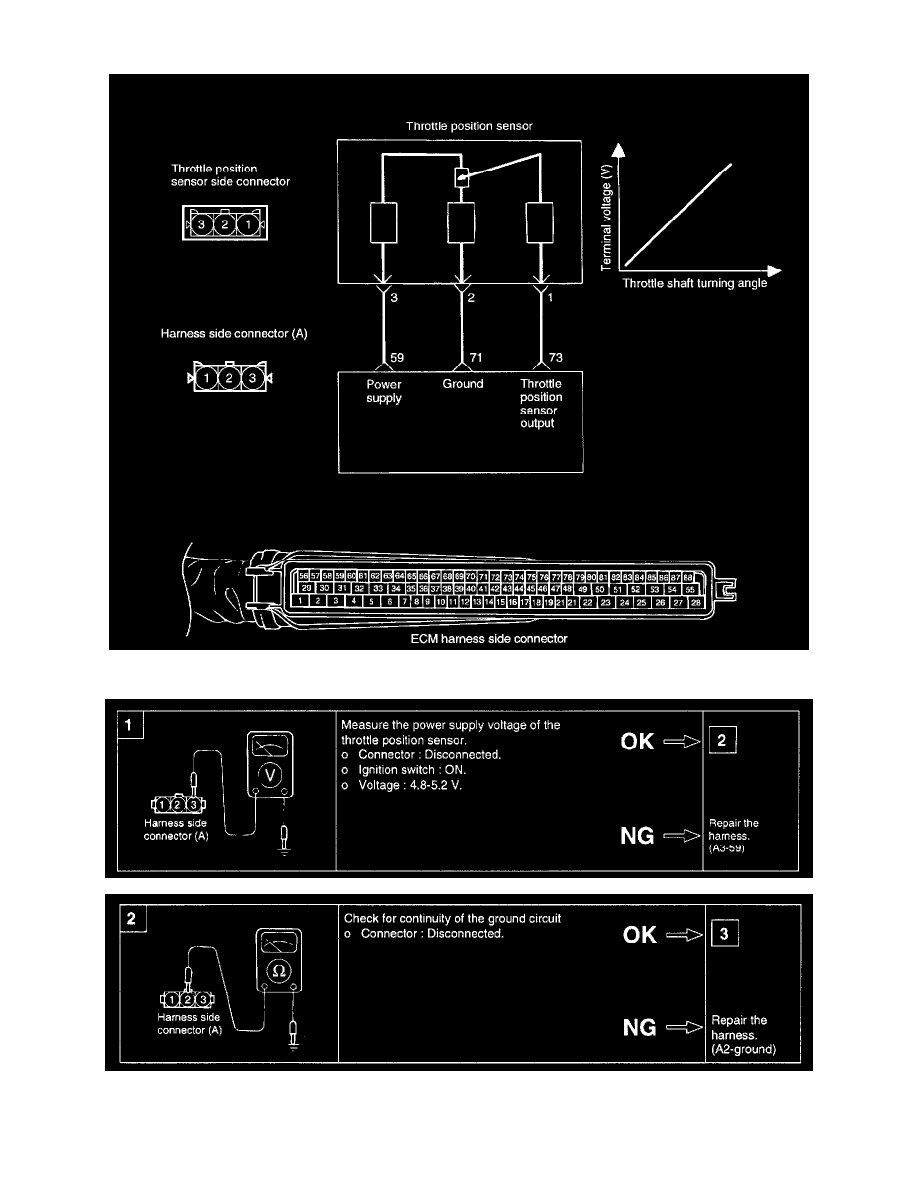

Throttle Position Sensor: Testing and Inspection

CIRCUIT DIAGRAM

Powertrain Management
Sensors and Switches - Powertrain Management / Sensors and Switches - Computers and Control Systems
Throttle Position Sensor / Component Information
Specifications
Page 2742
