Accent GS Coupe L4-1495cc 1.5L SOHC MFI (1999)

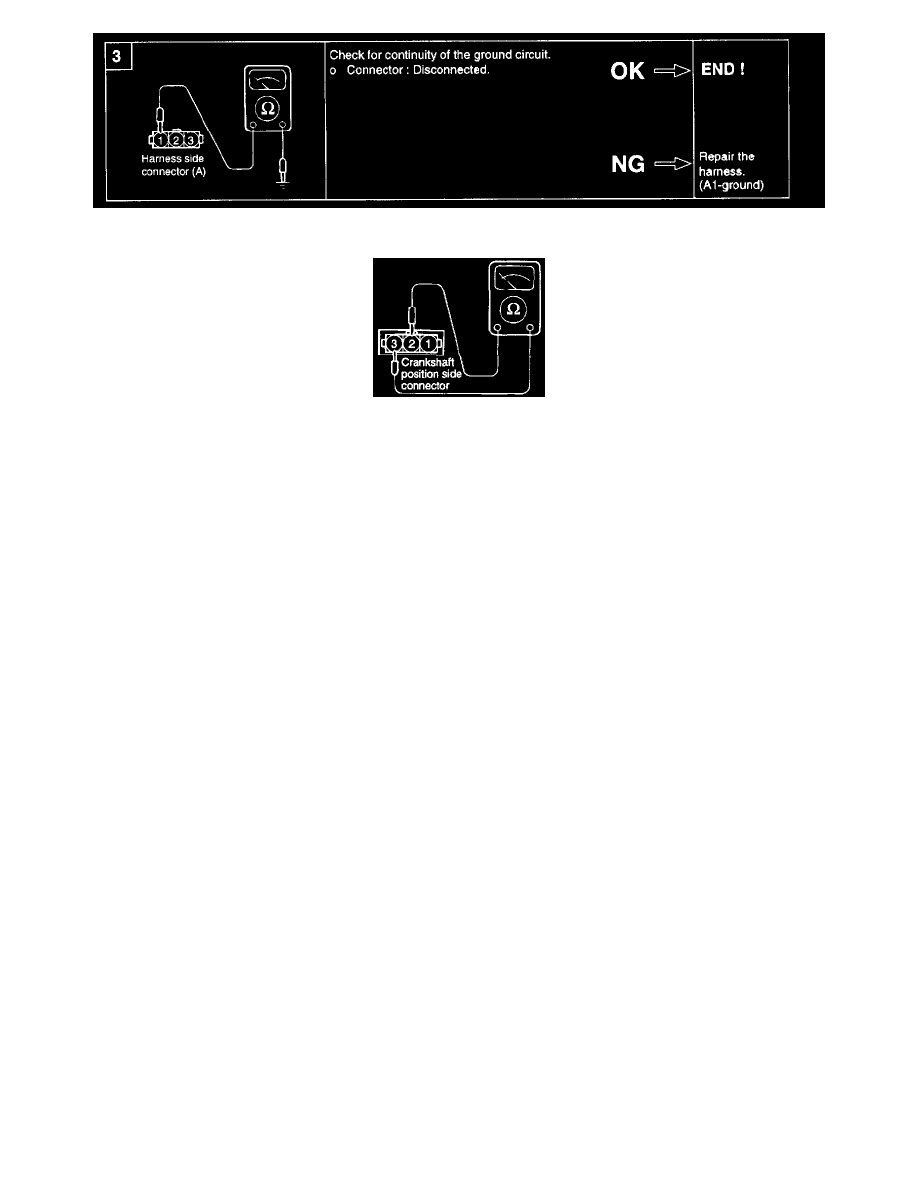

HARNESS INSPECTION PROCEDURE
SENSOR INSPECTION
1. Disconnect the crankshaft position sensor connector
2. Measure the resistance between terminal 2 and 3.
Standard value 0.486-0.594 kOhm at 20 °C (68 °F)
3. If the resistance deviates far from the standard value, replace the sensor.
Standard value: Clearance between the crankshaft position sensor and crankshaft position sensor wheel 0.5-1.5 mm (0.020-0.059 in.)
Tightening torque: Crankshaft position sensor 9-11 Nm (90-110 kg.cm, 6.6-8.1 lbf)
