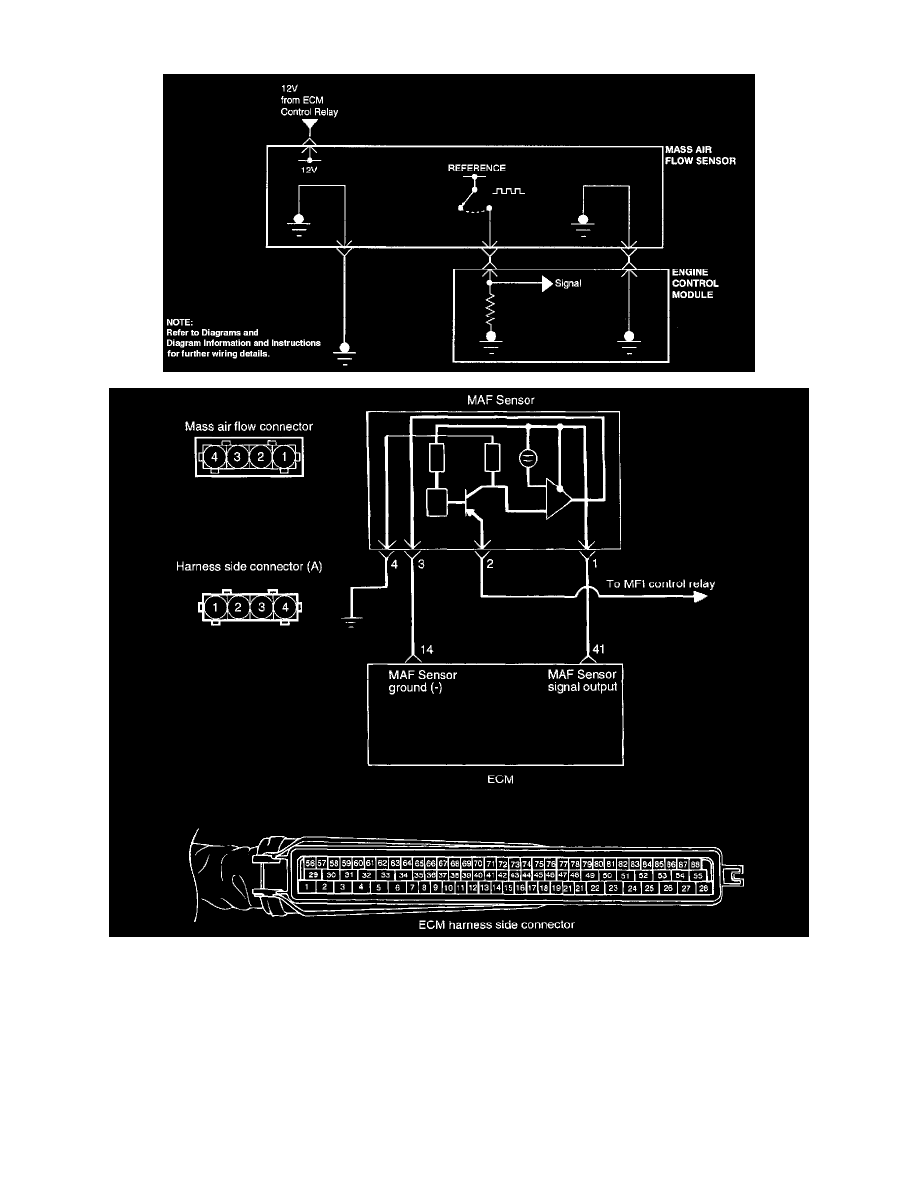

Mass Air Flow Sensor: Electrical Diagrams

Sensors and Switches
Sensors and Switches - Powertrain Management
Sensors and Switches - Fuel Delivery and Air Induction
Mass Air Flow Sensor <--> [Air Flow Meter/Sensor] / Component Information
Diagrams / Diagram Information and Instructions
