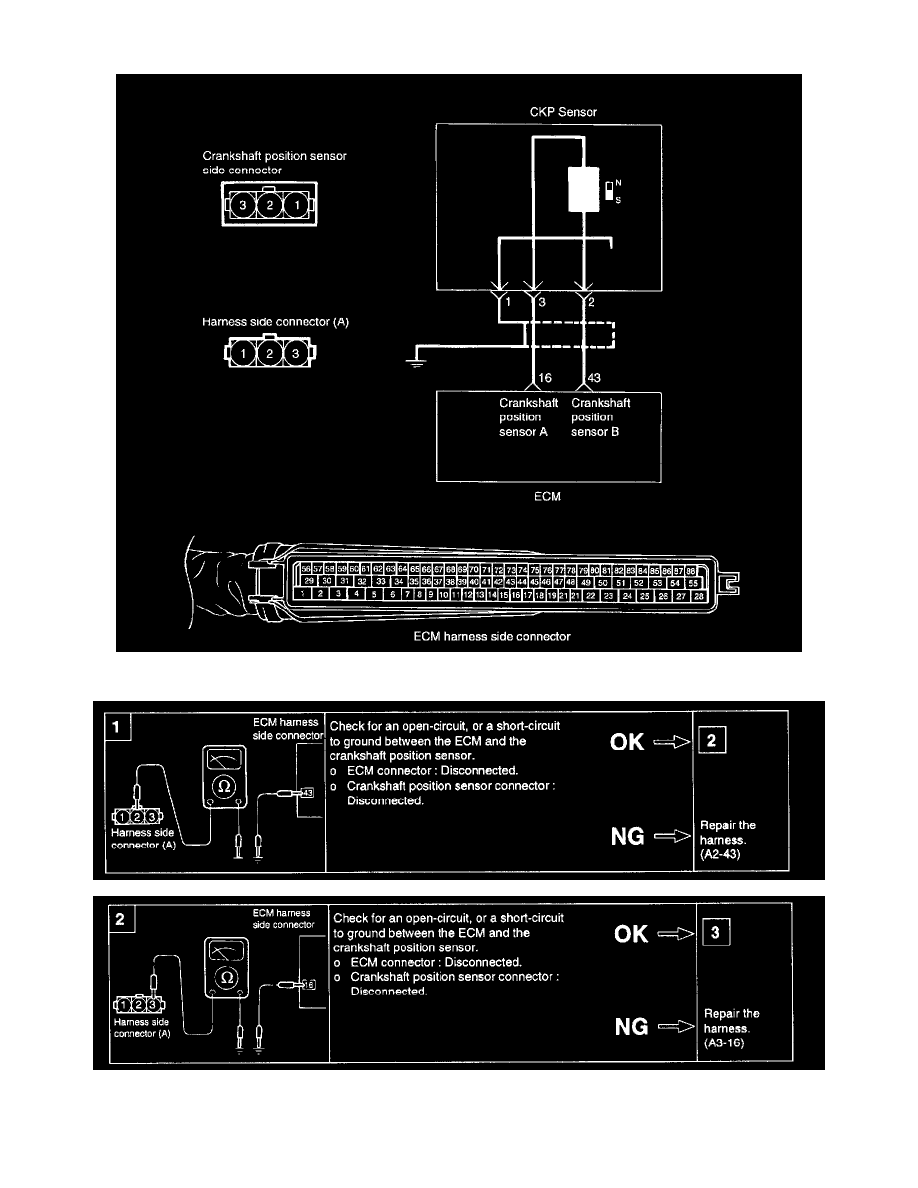

Crankshaft Position Sensor: Testing and Inspection

CIRCUIT DIAGRAM

Sensors and Switches
Sensors and Switches - Powertrain Management
Sensors and Switches - Ignition System
Crankshaft Position Sensor / Component Information
Diagrams
Page 1126
