Accent GS Coupe L4-1495cc 1.5L SOHC MFI (1999)
Transmission Position Switch/Sensor: Description and Operation

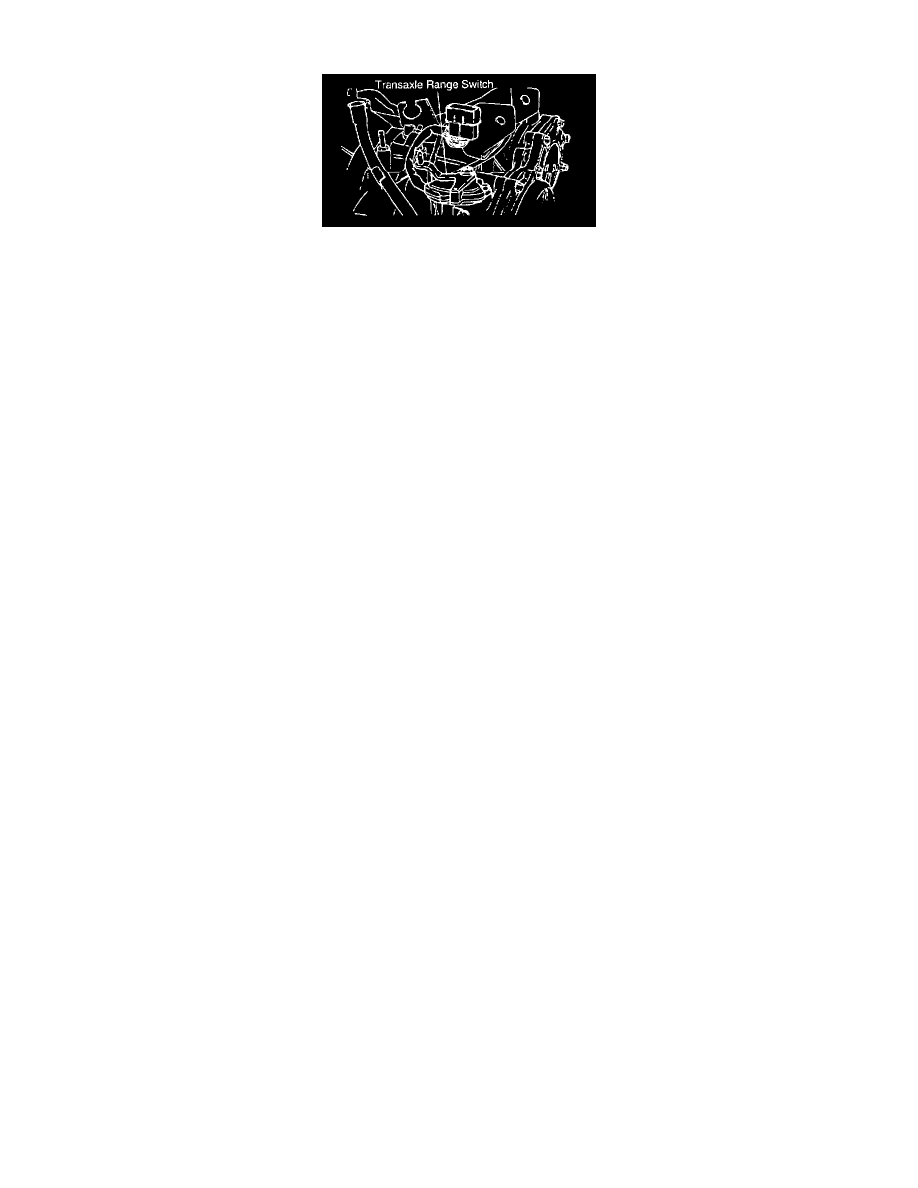

IGNITION SWITCH-ST AND TRANSAXLE RANGE SWITCH [A/T]
When the ignition switch is set ST position, the battery voltage is applied through the ignition switch and inhibitor switch to the ECM. If the selector
lever is not P or N position, the battery voltage will not reach to the ECM.
Based on this signal, the ECM determines the automatic transaxle load and drives the idle speed control actuator to maintain optimum idle speed.
