Accent GS Coupe L4-1495cc 1.5L SOHC MFI (1999)
Ignition Switch: Testing and Inspection
Ignition Switch-ST [A/T]
Ignition Switch-ST and Transaxle Range Switch [A/T]

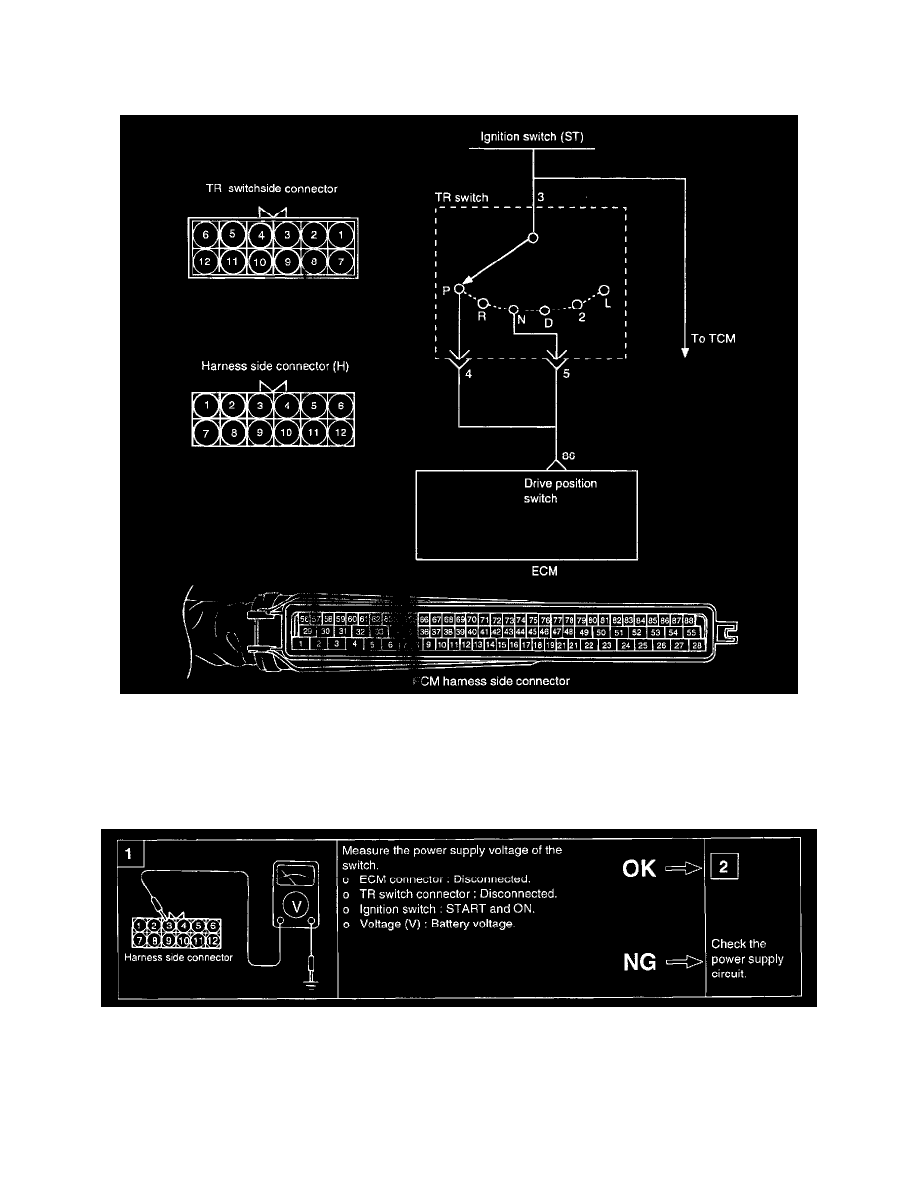

CIRCUIT DIAGRAM
TROUBLESHOOTING HINTS
If the park/neutral position switch harness check is normal but the park/neutral position switch output is abnormal, check for the control cable
adjustment.
