Accent GS Coupe L4-1495cc 1.5L SOHC MFI (1999)
Control Module: All Technical Service Bulletins
Scan Tool - Software Update Procedure
Group: GENERAL
Number: 00-00-001
Date: JULY, 2000
Model: ALL
Subject
HI-SCAN PRO SOFTWARE UPDATE PROCEDURE
DESCRIPTION
This bulletin details the procedure for updating the Hi-Scan Pro Software Cards. New software for the Hi-Scan and for reprogramming vehicle Engine
Control Modules (ECM) and Transaxle Control Modules (TCM) will be provided periodically via the Hyundai Service Web Site
(www.hmaservice.com) and HDS CDROM updates.
PROCEDURE:

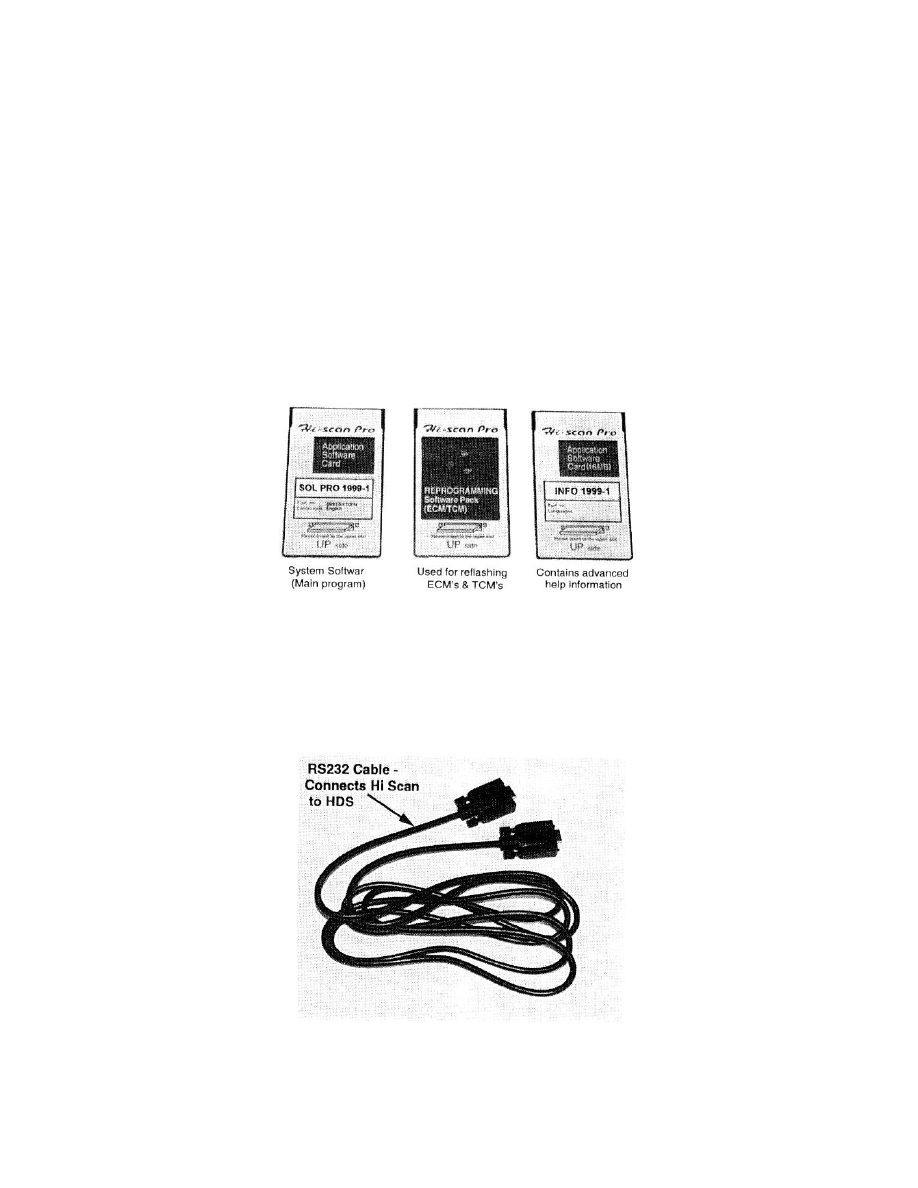

Three software cards are included in the Hi-Scan kit:
^
The "SOL" card contains the main program that operates the Hi-Scan; reading codes and data.
^
The "Reprogramming" card is used for reprogramming ECMs and TCMs for campaigns and field fixes.
^
The "INFO" card contains additional diagnostic tips and information that are not on the standard SOL card.
An RS232 communication cable is included in the Hi-Scan kit. This cable is used to connect the Hi-Scan to the HDS for data transfer.
