Accent GSI Coupe L4-1495cc 1.5L DOHC MFI (1998)
Idle Speed: Customer Interest
TPS - Driveability Concerns
Number
00-36-006
Group
ENGINE ELECTRICAL
Date
MARCH, 2000
Subject
THROTTLE POSITION SENSOR (TPS)
DRIVEABILITY SYMPTOMS
Model
1996-1999 ACCENT
1996-2000 ELANTRA
1997-2000 TIBURON
DESCRIPTION:
The Throttle Position Sensor (TPS) output signal is an important input for both the Engine and Transaxle Control Modules. A malfunctioning TPS may
result in the following symptoms:
^
Unstable idle
^
Uneven throttle response
^
Slip & shock during the 1-2 & 2-3 shift on Automatic Transaxle (ATM) equipped vehicles.
^
Erratic ATM shifts with possible shift flare (engine RPM increase during shifts)
^
Check engine light is ON (light may go off, but the code will remain stored)
^
TPS related code stored in the ECM and/or TCM
REPAIR INFORMATION:
1.
If the following three conditions are met:
^
The Throttle Position Sensor (TPS) is suspected
^
The ECM / TCM has no codes stored
^

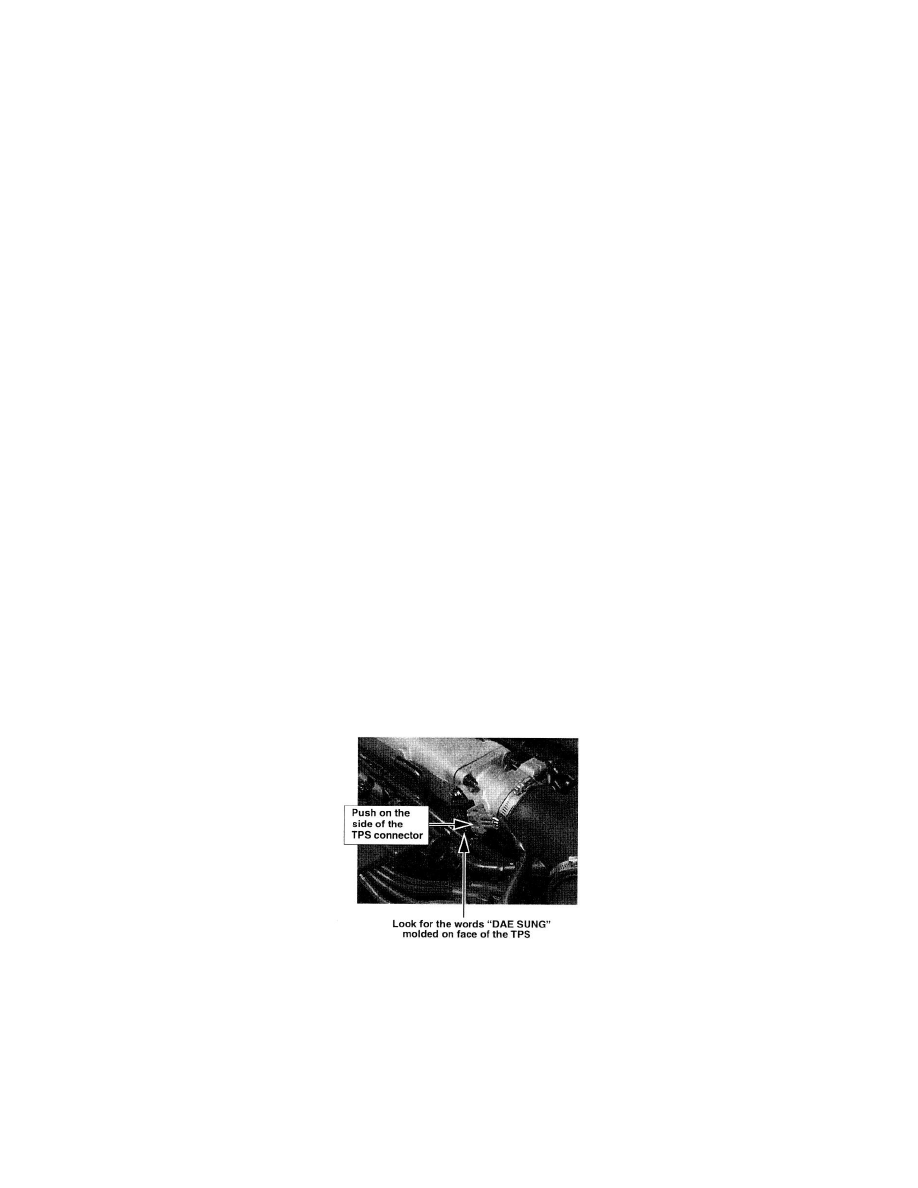

The Throttle Position Sensor (TPS) has the words "DAE SUNG" molded on the part
Then conduct the following diagnostic procedure:
^
The vehicle must be idling (with all accessories turned off)
